Step 5: Connect LPT device. Once the LPT interface connector is connected to the
chassis, the LPT device can be connected to the LPT interface connector. See
Figure 5-11 Step 5:\

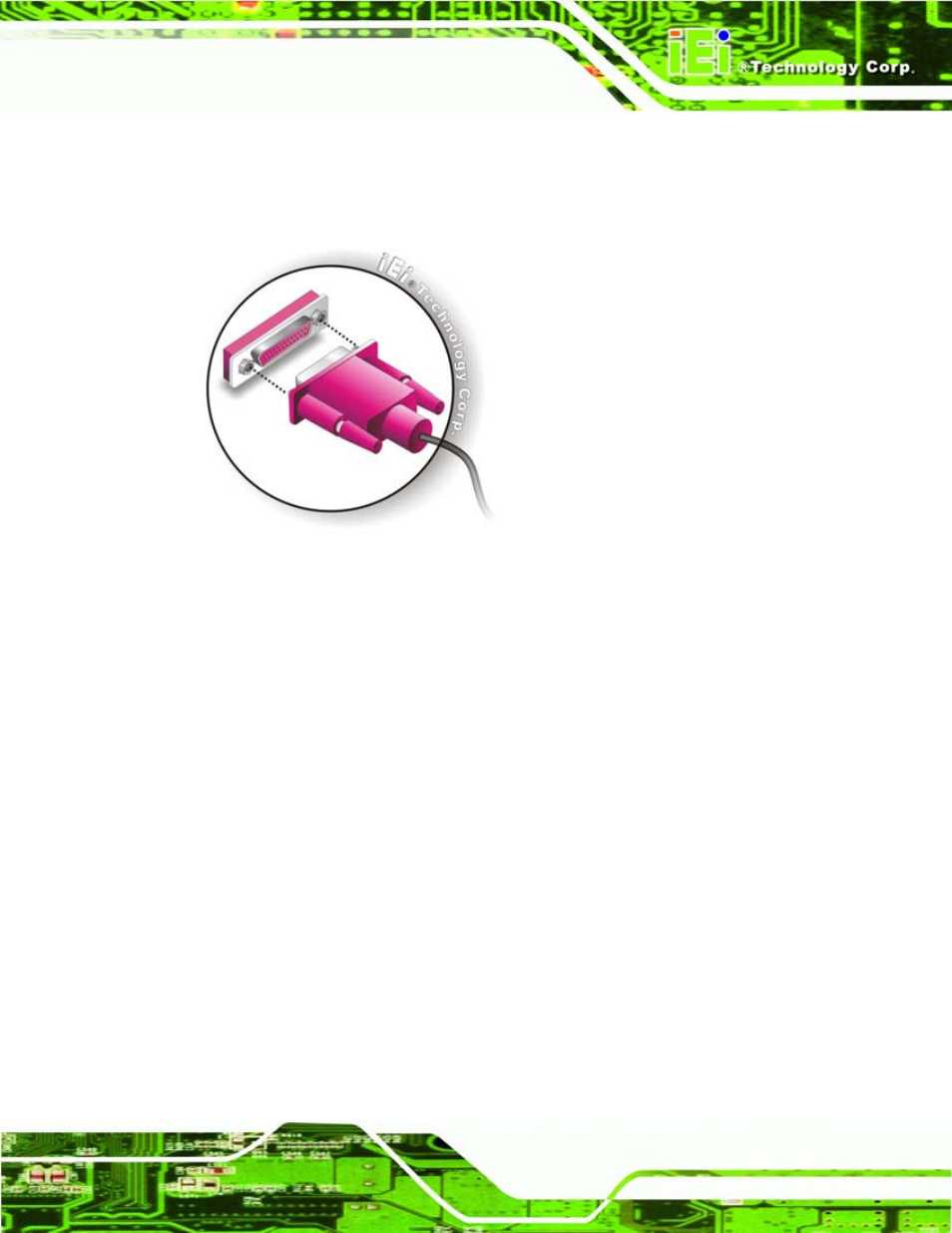

Figure 5-11: Connect the LPT Device
5.10 External Peripheral Interface Connection
The following external peripheral devices can be connected to the external peripheral
interface connectors.
ƒ RJ-45 Ethernet cable connectors
ƒ PS/2 devices
ƒ Serial port devices
ƒ USB devices
ƒ VGA monitors
To install these devices, connect the corresponding cable connector from the actual
device to the corresponding eKINO-945GSE external peripheral interface connector
making sure the pins are properly aligned.
