eKINO-945GSE Motherboard
Page 80

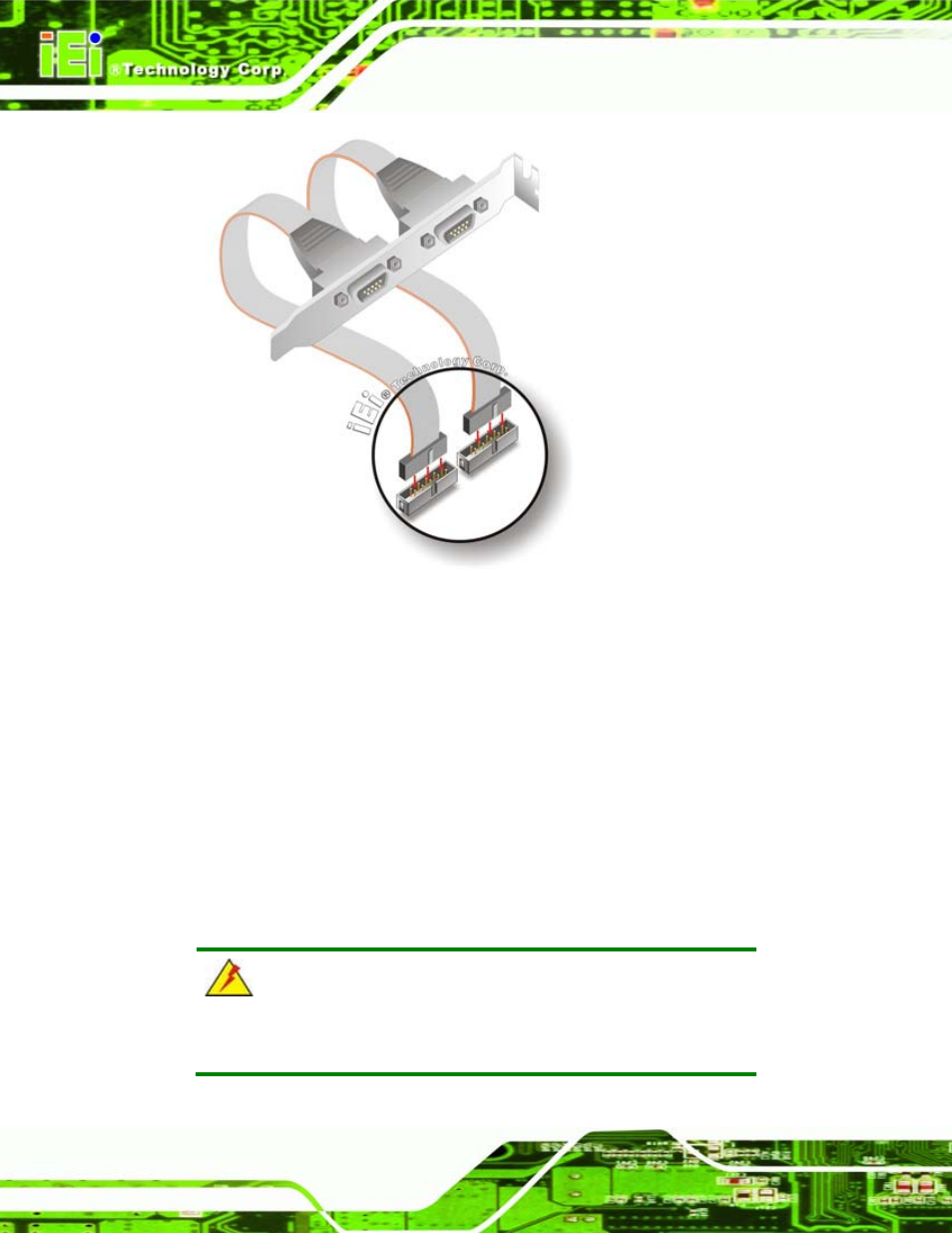

Figure 5-8: Dual RS-232 Cable Installation
Step 7: Secure the bracket. The dual RS-232 connector has two D-sub 9 male
connectors secured on a bracket. To secure the bracket to the chassis please
refer to the reference material that came with the chassis. Step 0:
5.9.4 USB Cable (Dual Port) with Slot Bracket
The eKINO-945GSE is shipped with a dual port USB 2.0 cable. To connect the USB cable
connector, please follow the steps below.
Step 1: Locate the connectors. The locations of the USB connectors are shown in
Chapter 3.
WARNING:
If the USB pins are not properly aligned, the USB device can burn out.
