eKINO-945GSE Motherboard
Page 37

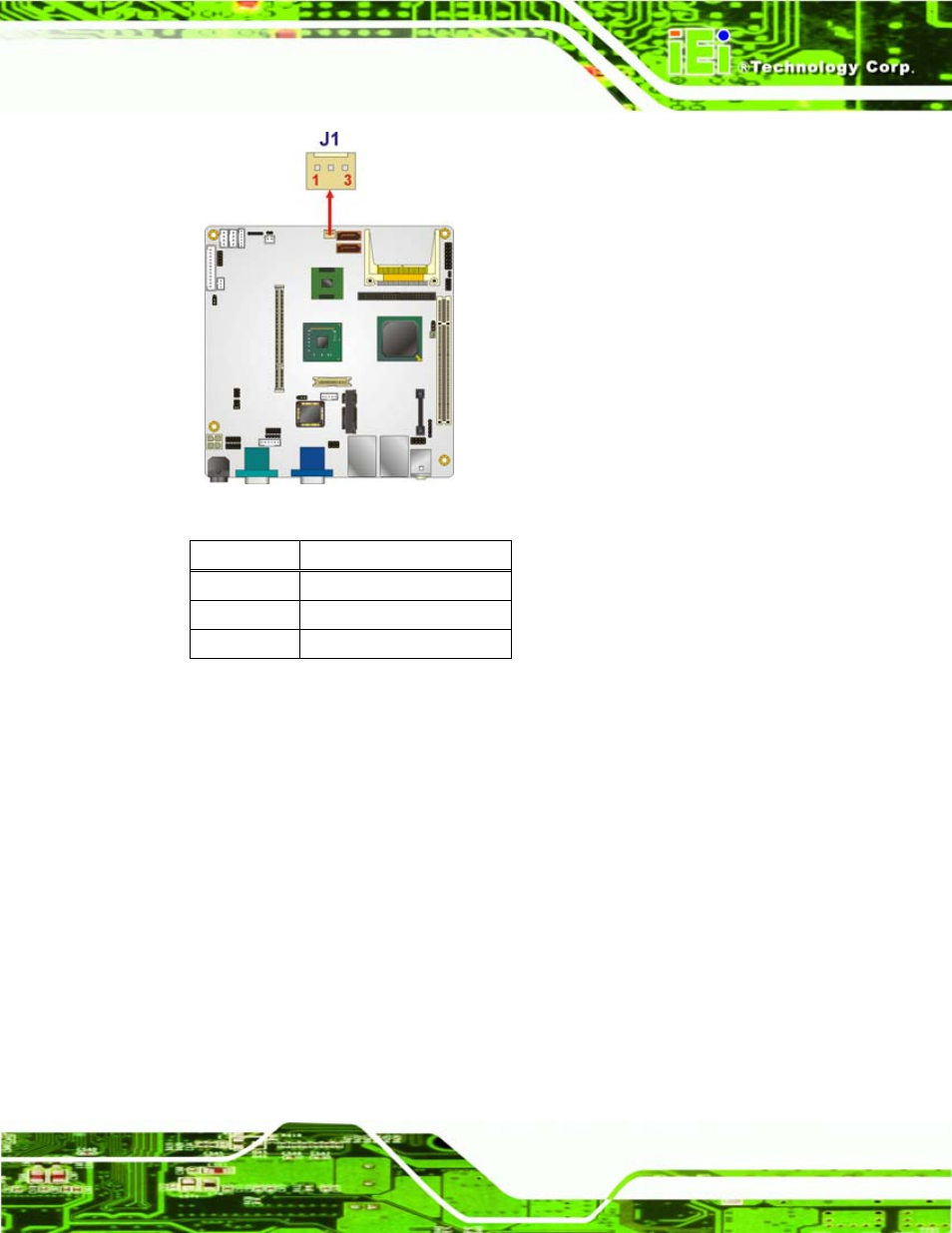

Figure 4-5: CPU Fan Connector Location
Pin No. Description
1 Fan Speed Detect
2 +12 V
3 GND
Table 4-5: CPU Fan Connector Pinouts
4.2.5 Front Panel Connector
CN Label: F_PANEL1
CN Type: 14-pin header (2x7)
CN Location: See Figure 4-6
CN Pinouts: See Table 4-6
The front panel connector connects to external switches and indicators to monitor and
controls the motherboard. These indicators and switches include:
ƒ Power button
ƒ Reset
ƒ Speaker
