eKINO-945GSE Motherboard
Page 57
Pin Signal Name Pin Signal Name Pin Signal Name
8 Analog vertical sync 16 GND 24 TMDS Clock -
C1 Analog Red -- -- -- --
C2 Analog Green -- -- -- --
C3 Analog Blue -- -- -- --
C4 Analog Horizontal Sync -- -- -- --
C5 Analog GND -- -- -- --
Table 4-20: DVI Connector Pinouts
4.3.3 LAN Connectors
CN Label: LAN/USB1 & LAN/USB2
CN Type: RJ-45
CN Location: See
8
Figure 4-24
CN Pinouts: See
8
Table 4-21
The RJ-45 connectors connect to a wired network.
Pin Description Pin Description
1 MDIA3- 5 MDIA1+
2 MDIA3+ 6 MDIA2+
3 MDIA2- 7 MDIA0-
4 MDIA1- 8 MDIA0+
Table 4-21: LAN Pinouts

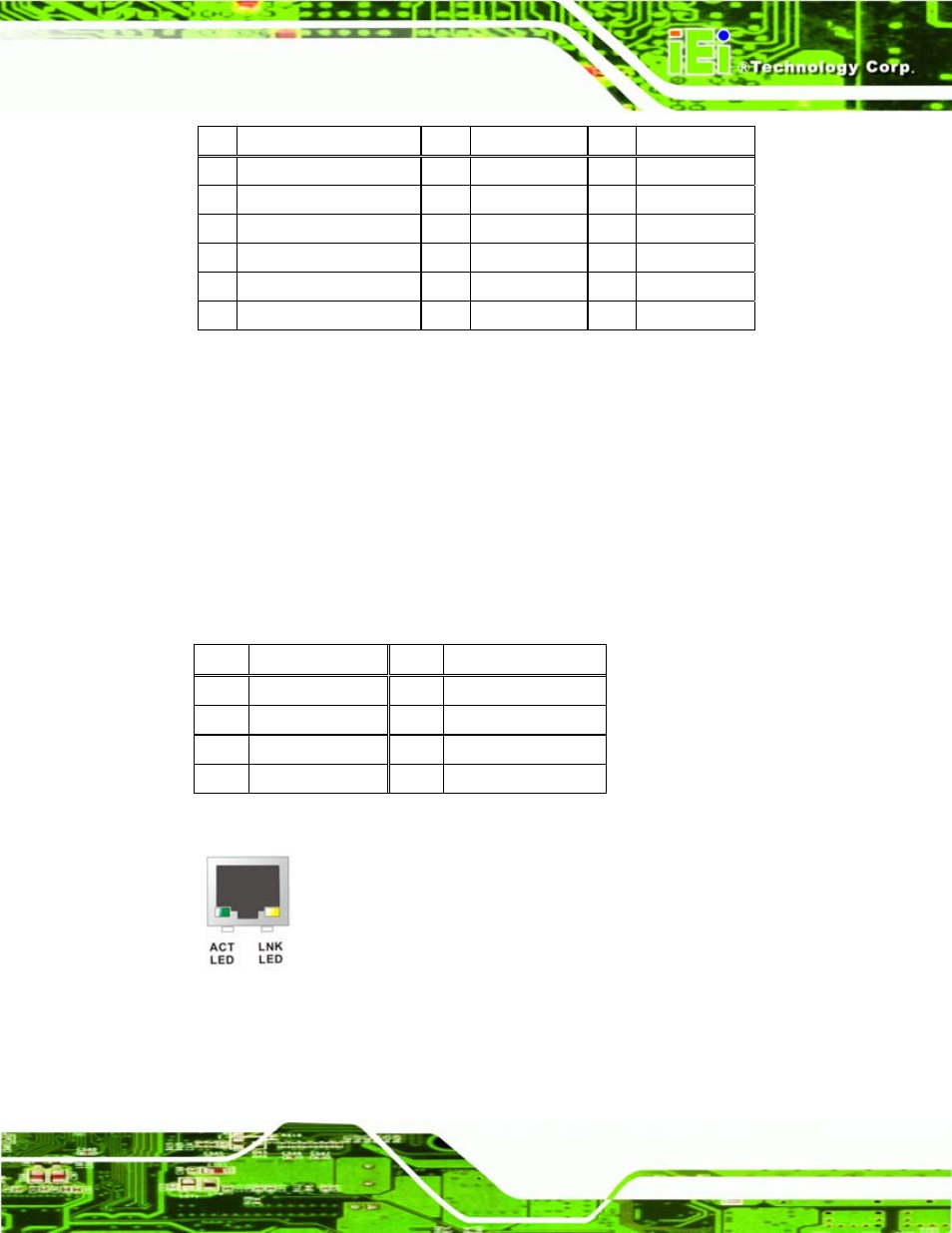

Figure 4-26: RJ-45 Ethernet Connector
