13 pcie mini card slot, 14 power connectors, Figure 4-14: pcie mini card slot location – IEI Integration eKINO-945GSE v1.01 User Manual

Page 62: Table 4-12: mcu lan connector pinouts

background image

eKINO-945GSE Motherboard

Page 46

Pin No.

Description

8

Pair 2

9

TX+

10

TX-

Table 4-12: MCU LAN Connector Pinouts

4.2.13 PCIe Mini Card Slot

CN Label:

MINI_PCIE1

CN Type:

52-pin Mini PCIe Card Slot

CN Location:

See

8

Figure 4-14

The PCIe mini card slot enables a PCIe mini card expansion module to be connected to

the board. Cards supported include among others wireless LAN (WLAN) cards.

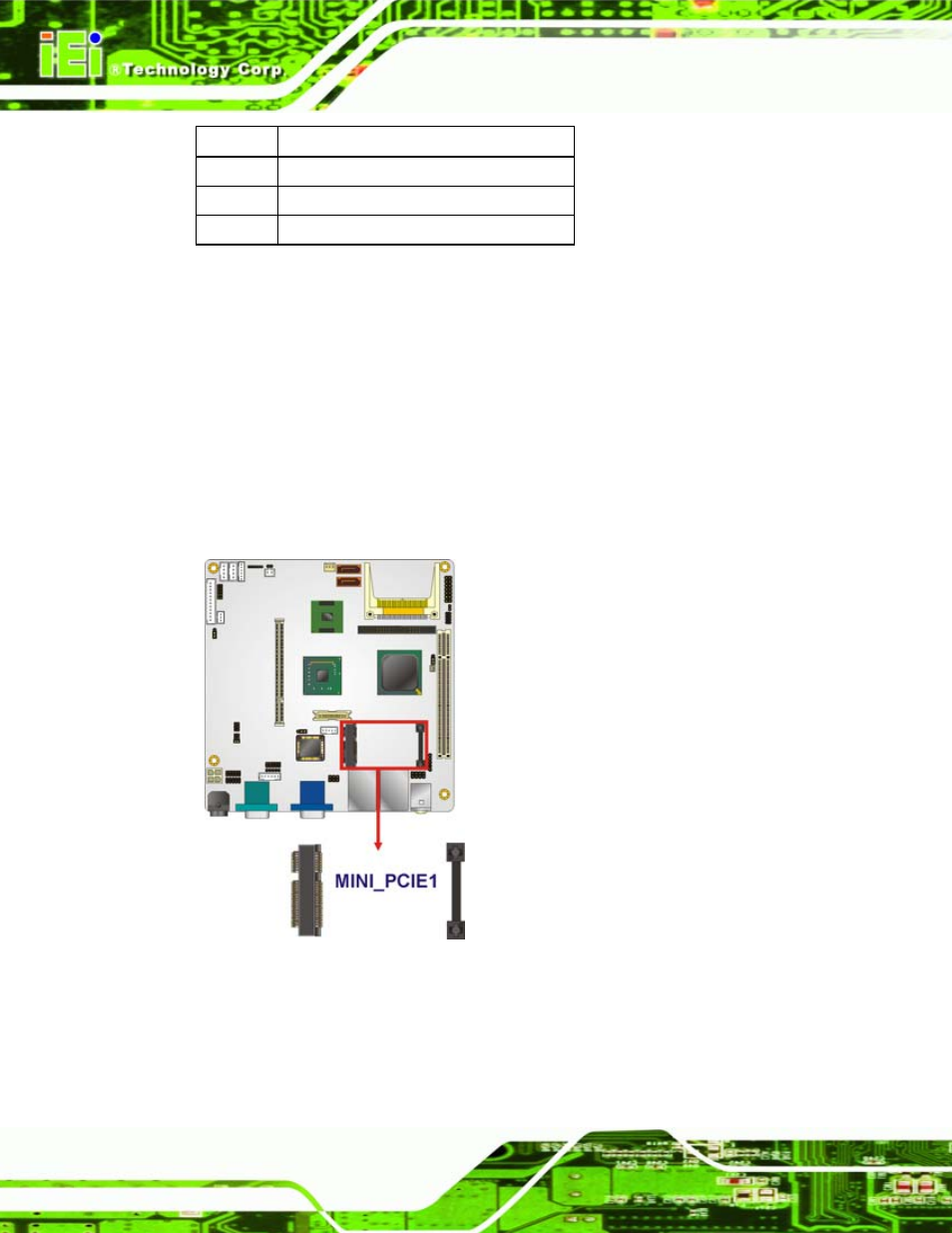

Figure 4-14: PCIe Mini Card Slot Location

4.2.14 Power Connectors

CN Label:

CN2
