eKINO-945GSE Motherboard

Page 59

4.3.5 USB Connectors

CN Label:

LAN/USB1 and LAN/USB2

CN Type:

USB port

CN Location:

See

8

Figure 4-24

CN Pinouts:

See

8

Table 4-24

The eKINO-945GSE has one external USB 2.0 port. The ports connect to both USB 2.0

and USB 1.1 devices.

Pin No.

Description

1 VCC

2 DATA-

3 DATA+

4 GND

Table 4-24: USB Port Pinouts

4.3.6 VGA Connector

CN Label:

VIDEO1 (top)

CN Type:

15-pin Female

CN Location:

See

8

Figure 4-24

CN Pinouts:

See

8

Figure 4-28 and

8

Table 4-25

The eKINO-945GSE has a single 15-pin female connector for connectivity to standard

display devices.

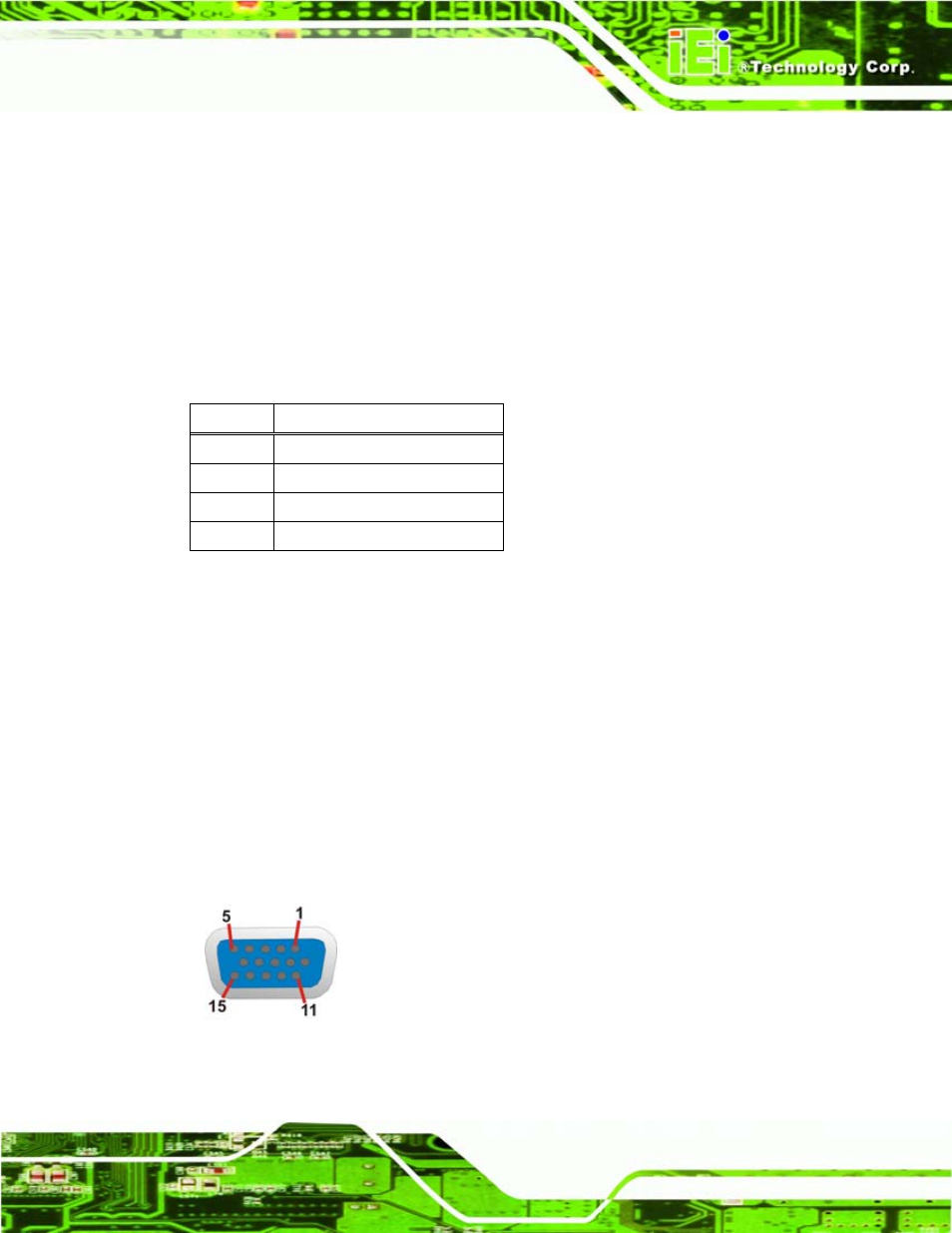

Figure 4-28: VGA Connector
