eKINO-945GSE Motherboard

Page 43

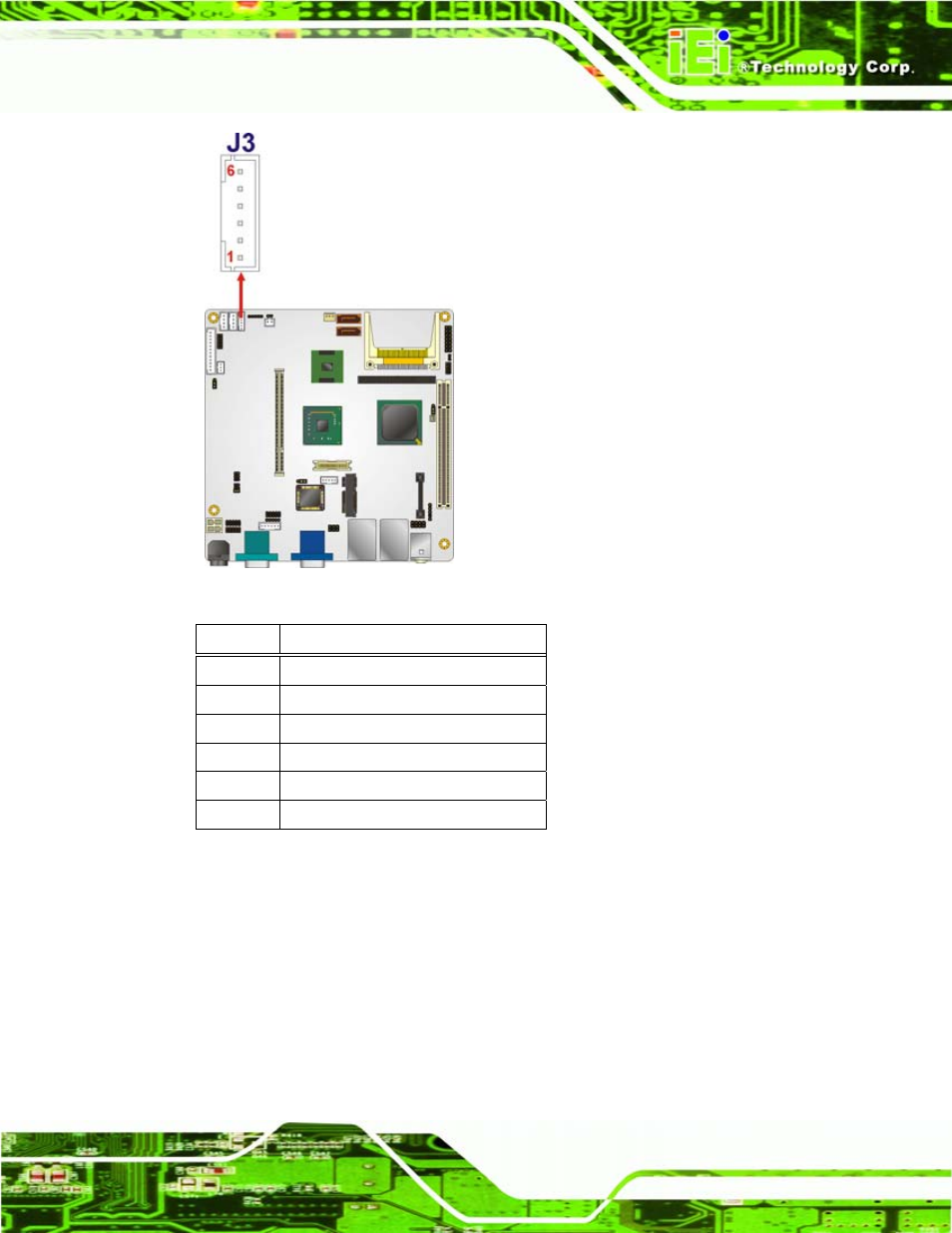

Figure 4-11: LED Connector Location

Pin No

Description

1 Battery

discharge+

2 Battery

discharge-

3 Battery

charging+

4 Battery

charging-

5 DC+

6 DC-

Table 4-10: LED Connector Pinouts

4.2.11 LVDS LCD Connector

CN Label:

LVDS1

CN Type:

30-pin crimp (2x10)

CN Location:

See Figure 4-12

CN Pinouts:

See Table 4-11
