eKINO-945GSE Motherboard
Page 2
1.1 Introduction

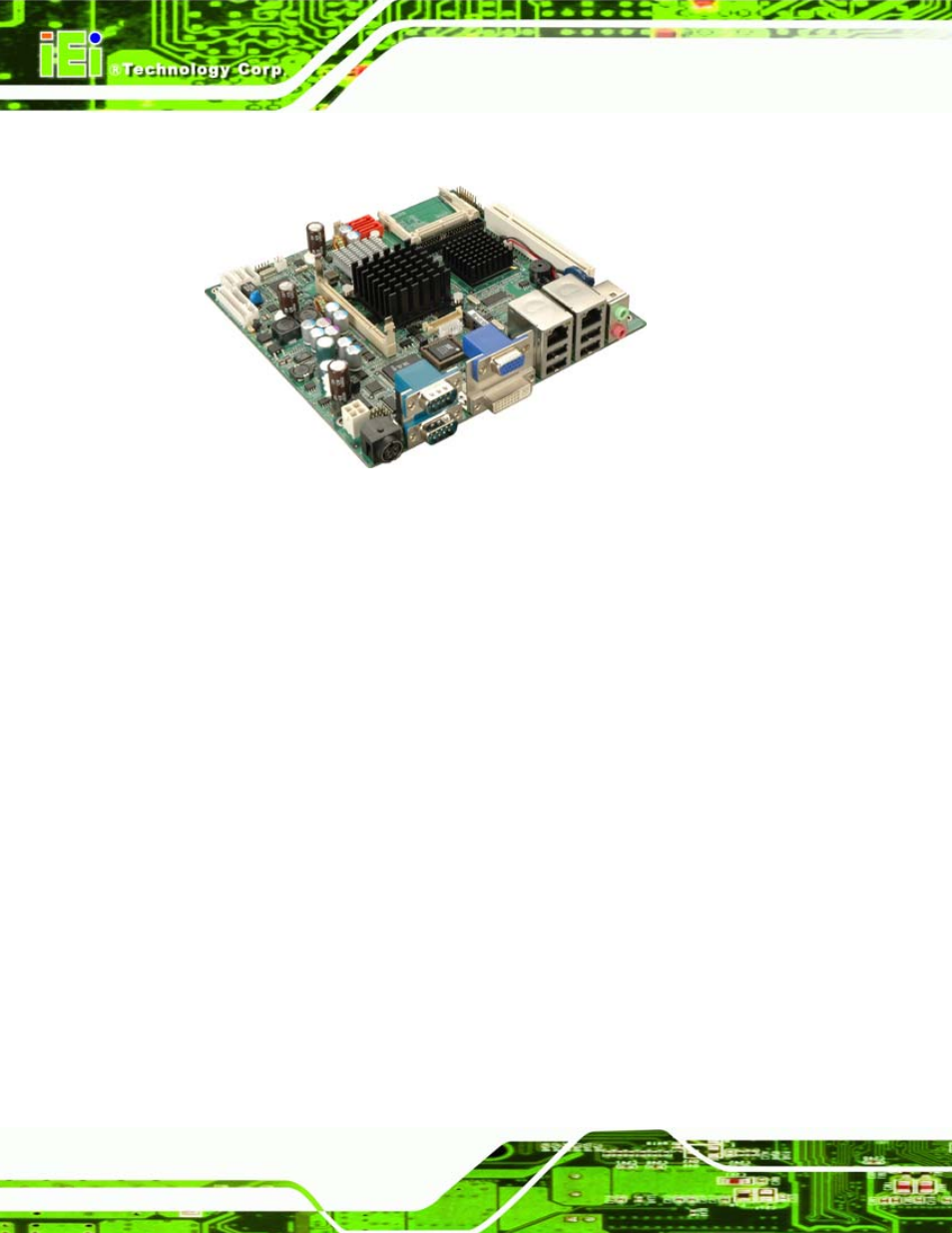

Figure 1-1: eKINO-945GSE
The eKINO-945GSE Mini-ITX motherboards have embedded Intel® Atom™ processors.
The eKINO-945GSE provides its own UPS by attaching the included battery. The
embedded Intel® Atom™ N270 processor has a 1.60 GHz clock speed, a 533 MHz FSB
and a 512 KB L2 cache. The eKINO-945GSE also supports one 200-pin 533 MHz 2.0 GB
(max.) DDR2 SDRAM SO-DIMM. The board comes with VGA, DVI, HDTV and 18-bit
dual-channel LVDS video outputs. The eKINO-945GSE also comes with two PCI Express
(PCIe) Gigabit Ethernet (GbE) connectors, onboard AC’97 audio, three RS-232 serial
ports, one RS-232/422/485 serial port, a CompactFlash® slot, six USB 2.0 ports, IDE
connector and PCI expansion card slot.
1.2 eKINO-945GSE Overview
1.2.1 Overview Photo
The eKINO-945GSE has a wide variety of peripheral interface connectors.
7
Figure 1-2 is a
labeled photo of the peripheral interface connectors on the eKINO-945GSE.
