eKINO-945GSE Motherboard
Page 53
Pin Description
1 VCC5
2 NC
3 SPDIF OUT
4 GND AUDIO
5 SPDIF IN
Table 4-17: SPDIF Connector Pinouts
4.2.21 TV Out Connector
CN Label: TV1
CN Type: 6-pin header (2x3)
CN Location: See Figure 4-22
CN Pinouts: See Table 4-18
The 2x3 pin TV out connector connects to a TV output by using an S-Video or RCA
connector. The TV out connector makes displaying media data on a television easier.

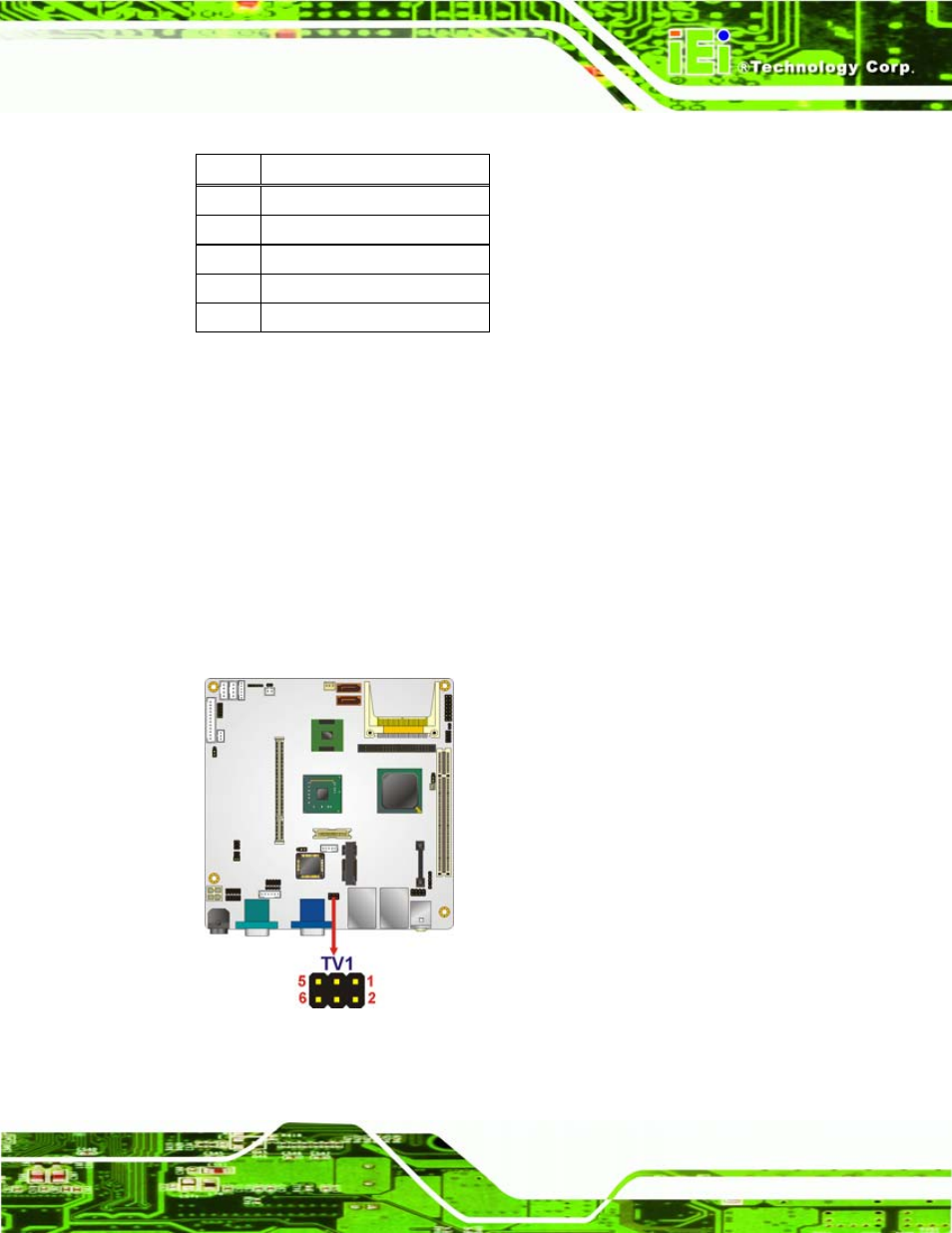

Figure 4-22: TV Connector Pinout Locations
