eKINO-945GSE Motherboard
Page 48
The four SATA drive connectors are each connected to a first generation SATA drive. First
generation SATA drives transfer data at speeds as high as 150 Mb/s. The SATA drives
can be configured in a RAID configuration.

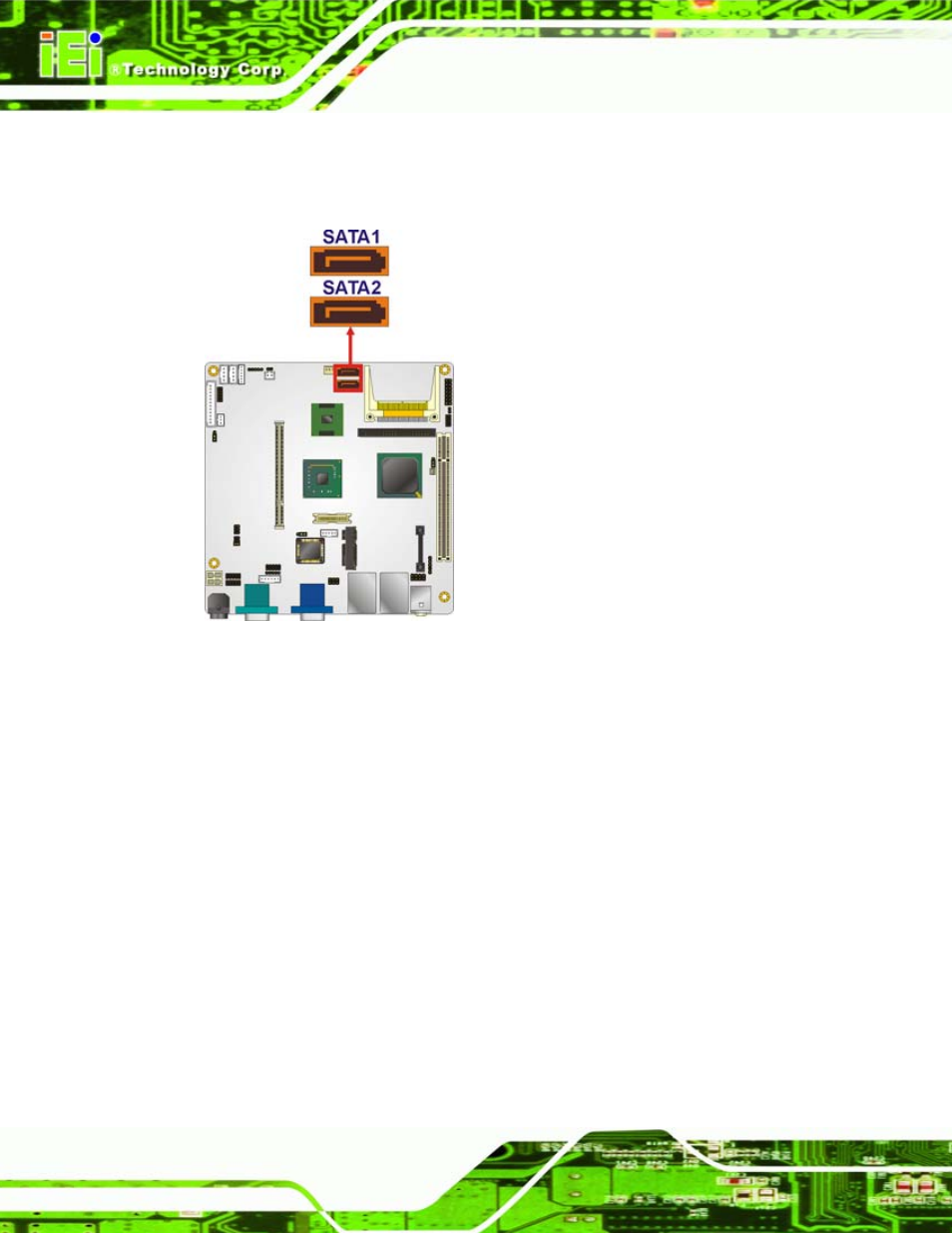

Figure 4-16: SATA Drive Connector Locations
4.2.16 SATA Power Connectors
CN Label: PW1 and PW2
CN Type: 4-pin box header
CN Location: See Figure 4-16
CN Pinouts: See Table 4-14
The SATA power connectors provide power to SATA drives. These power connectors are
connected to the UPS in case of power loss. Do not connect SATA drives to the main
power supply.
