eKINO-945GSE Motherboard

Page 51

CN Pinouts:

See

8

Table 4-16

The serial port connector provides the RS-422 and RS-485 pins for serial port COM3. JP1

sets COM3 to RS-232, RS-422 or RS-485, use the COM3 connector for RS-232 and the

connectors on JP2 for RS-422 or RS-485 connectivity.

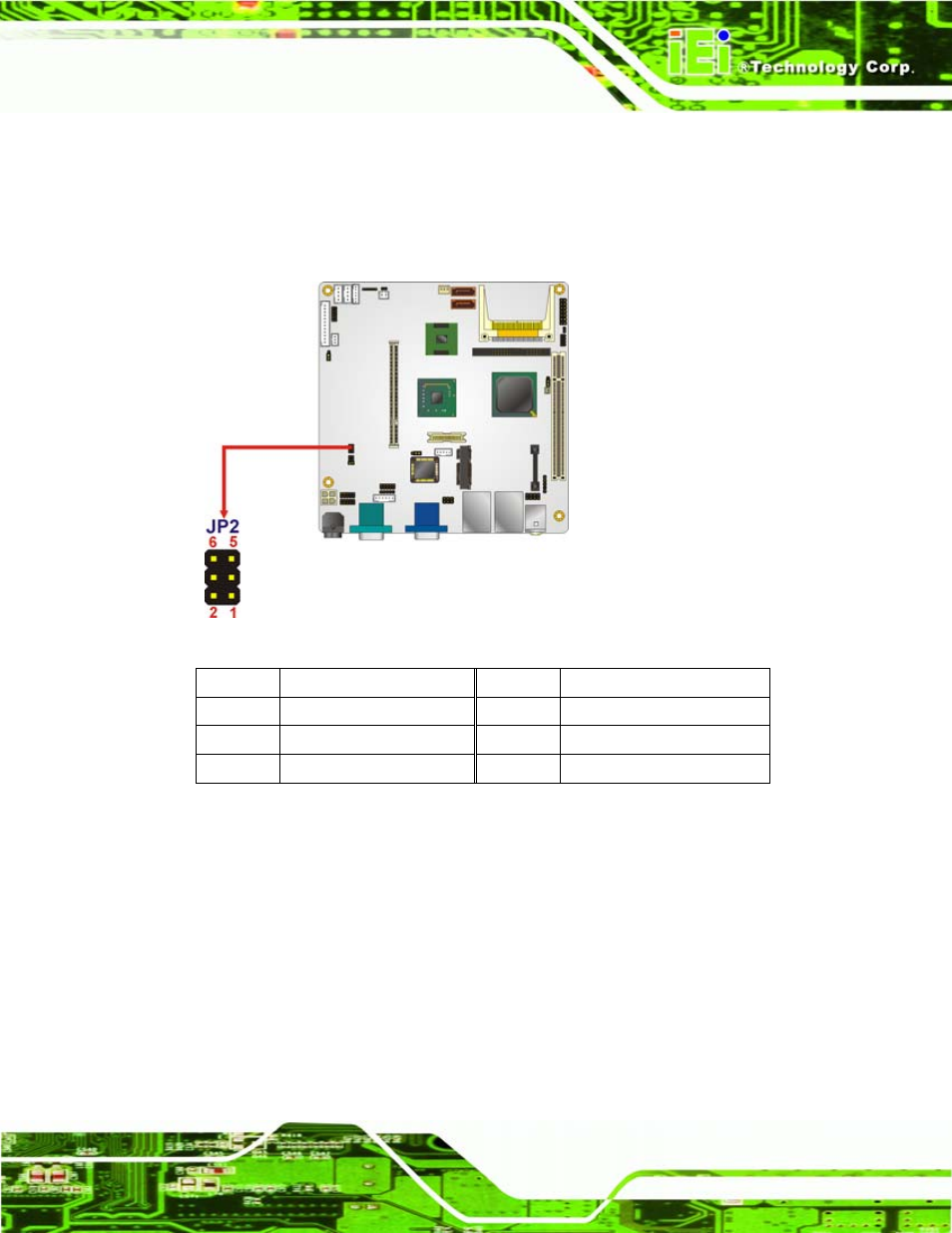

Figure 4-19: RS-422/485 Connector Pinout Locations

Pin

No. Description

Pin

No. Description

1 TX_422-

2 RX_422-

3 TX_422+

4 RX_422+

5 D_485+

6 D_485-

Table 4-16: RS-422/485 Connector Pinouts

4.2.19 SO-DIMM Socket

CN Label:

DIMM1

CN Type:

DDR2 SO-DIMM socket

CN Location:

See Figure 4-20

The digital input/output connector is managed through a Super I/O chip. The DIO

connector pins are user programmable.
