eKINO-945GSE Motherboard

Page 55

Pin No.

Description

Pin No.

Description

USB Connector 1

USB Connector 2

1 VCC

2 GND

3 DATA1- 4 DATA2+

5 DATA1+ 6 DATA2-

7 GND

8 VCC

Table 4-19: USB Port Connector Pinouts

4.3 External Peripheral Interface Connector Panel

8

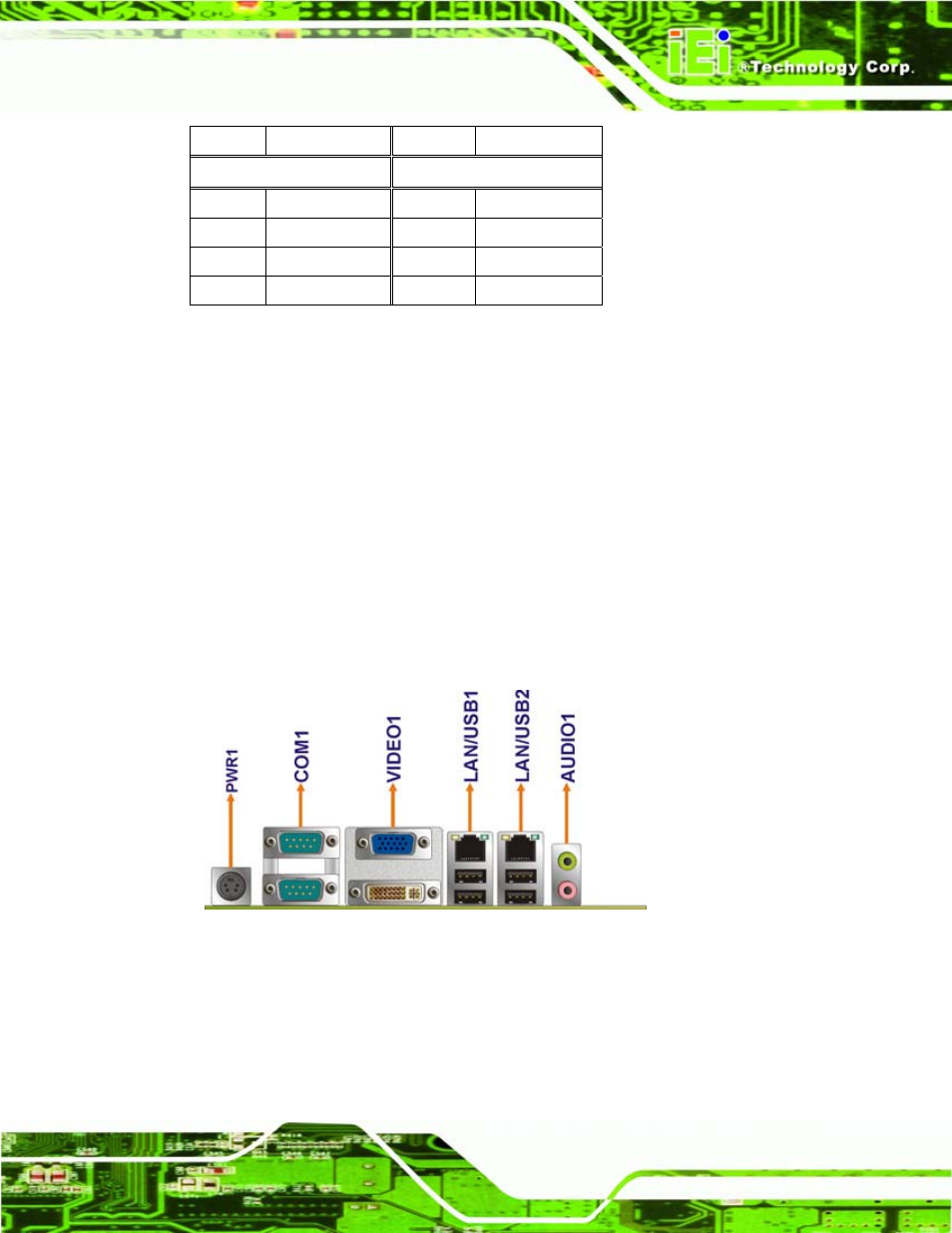

Figure 4-24 shows the eKINO-945GSE external peripheral interface connector (EPIC)

panel. The eKINO-945GSE EPIC panel consists of the following:

ƒ 2 x Audio jacks

ƒ 1 x DVI connector

ƒ 2 x RJ-45 LAN connectors

ƒ 1 x Power DIN

ƒ 2 x Serial port connectors

ƒ 4 x USB connectors

ƒ 1 x VGA connector

Figure 4-24: eKINO-945GSE External Peripheral Interface Connector

4.3.1 Audio Connector

CN Label:

AUDIO1

CN Type:

2 x audio jacks
