eKINO-945GSE Motherboard
Page 47
CN Type: 4-pin power connectors
CN Location: See Figure 4-15
CN Pinouts: See Table 4-13
The power connectors connect to a 9~24 V power supply.

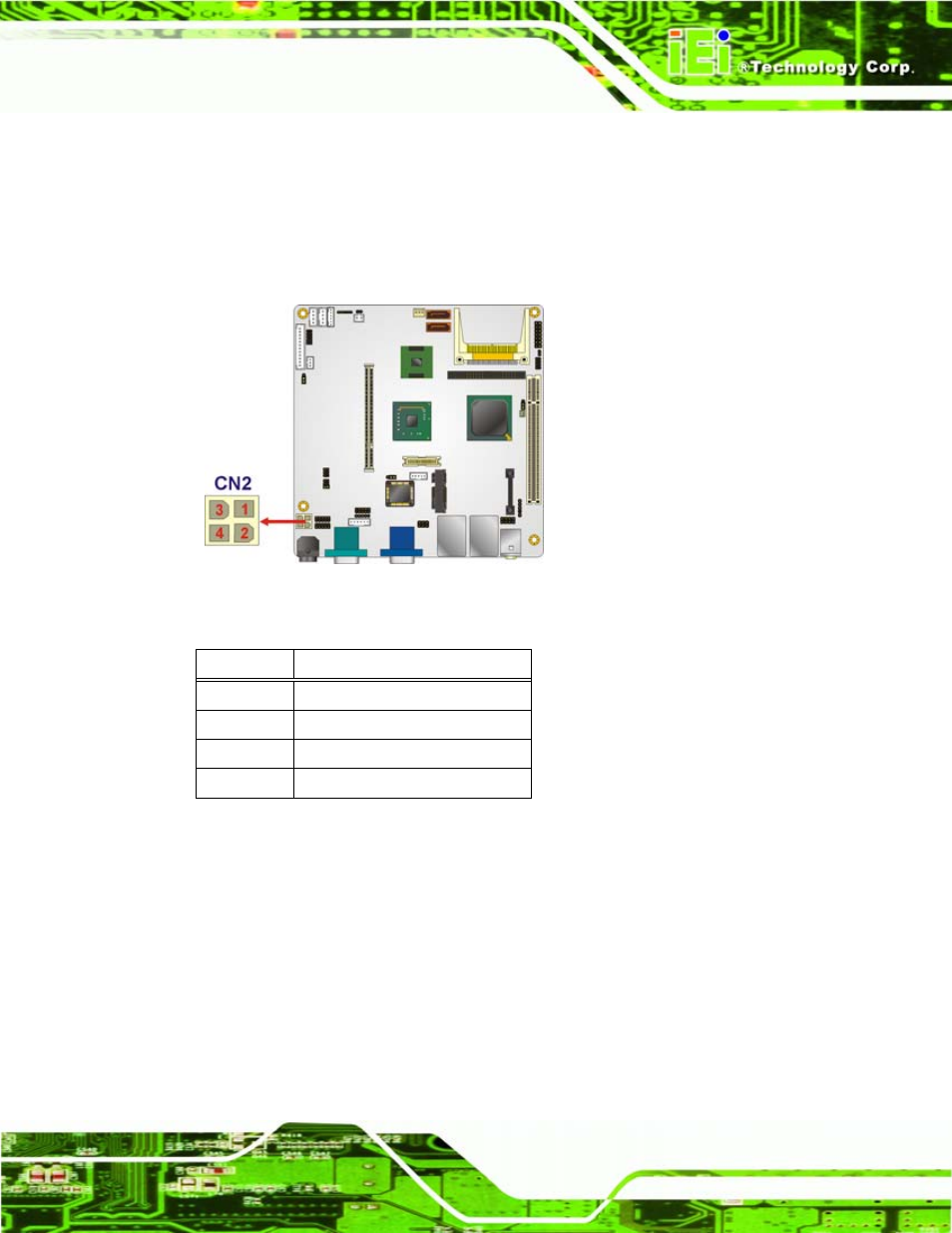

Figure 4-15: Power Connector Location
Pin No. Description
1 Ground
2 Ground
3 Power (9~24 V)
4 Power (9~24 V)
Table 4-13: Power Connector Pinouts
4.2.15 SATA Drive Connectors
CN Label: SATA1, SATA2
CN Type: 7-pin SATA drive connectors
CN Location: See
8
Figure 4-16
CN Pinouts: See
8
Table 4-14
