CN Location: See Figure 4-24
The two audio jacks connect to external audio devices as specified below.
ƒ Line Out port (Lime): Connects to a headphone or a speaker. With
multi-channel configurations, this port can also connect to front speakers.
ƒ Microphone (Pink): Connects a microphone.

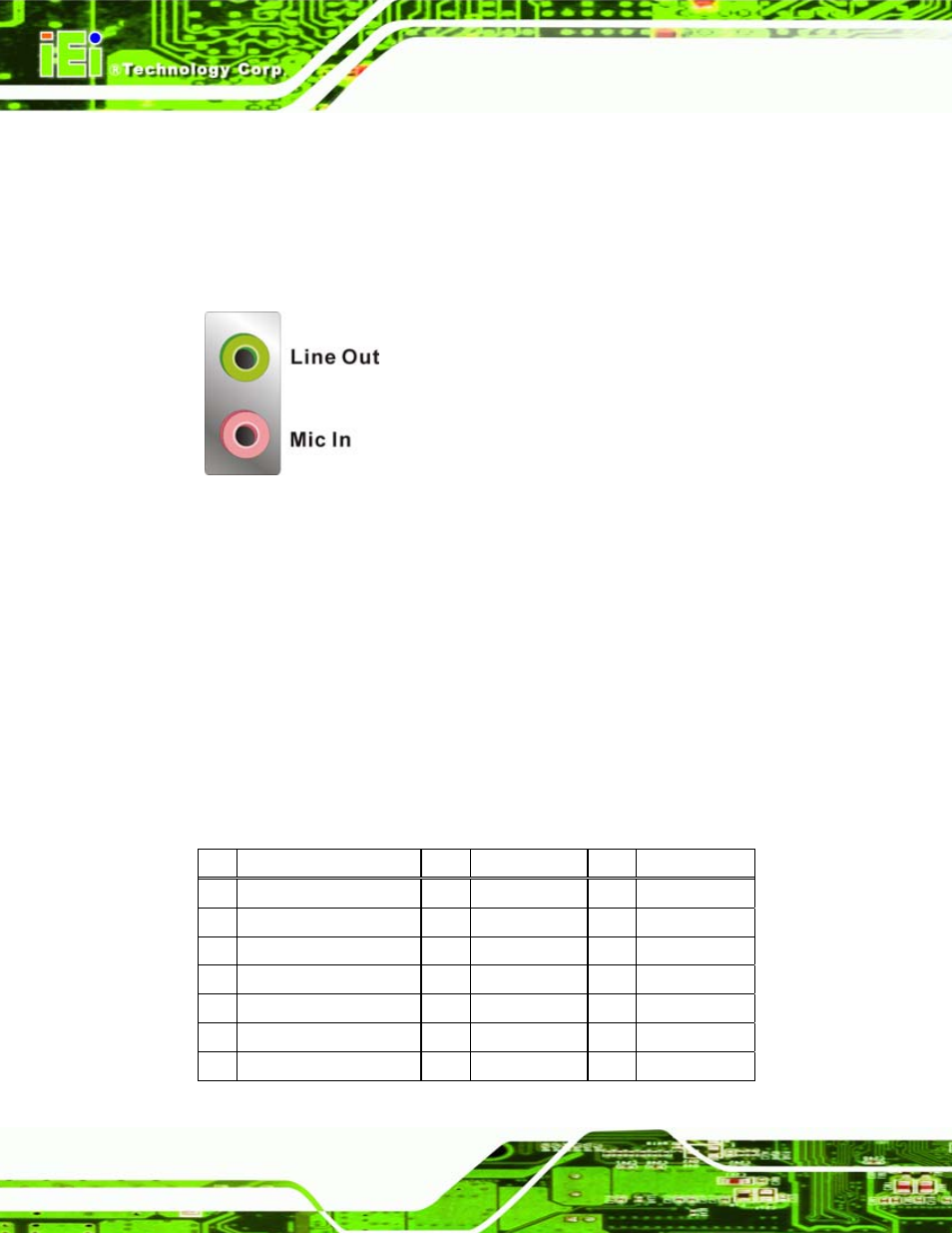

Figure 4-25: Audio Connector
4.3.2 DVI Connector
CN Label: VIDEO1 (bottom)
CN Type: DVI connector
CN Location: See Figure 4-24
CN Pinouts: See Table 4-20
The 24-pin Digital Visual Interface (DVI) connector connects to high-speed,
high-resolution digital displays. The DVI-I connector supports both digital and analog
signals.
Pin Signal Name Pin Signal Name Pin Signal Name
1 TMDS Data2- 9 TMDS Data1- 17 TMDS Data0-
2 TMDS Data2+ 10 TMDS Data1+ 18 TMDS Data0+
3 GND 11 GND 19 GND
4 N/C 12 NC 20 NC
5 N/C 13 NC 21 NC
6 DDC Clock [SCL] 14 PVDD1 22 GND
7 DDC Data [SDA] 15 GND 23 TMDS Clock +
