eKINO-945GSE Motherboard

Page 42

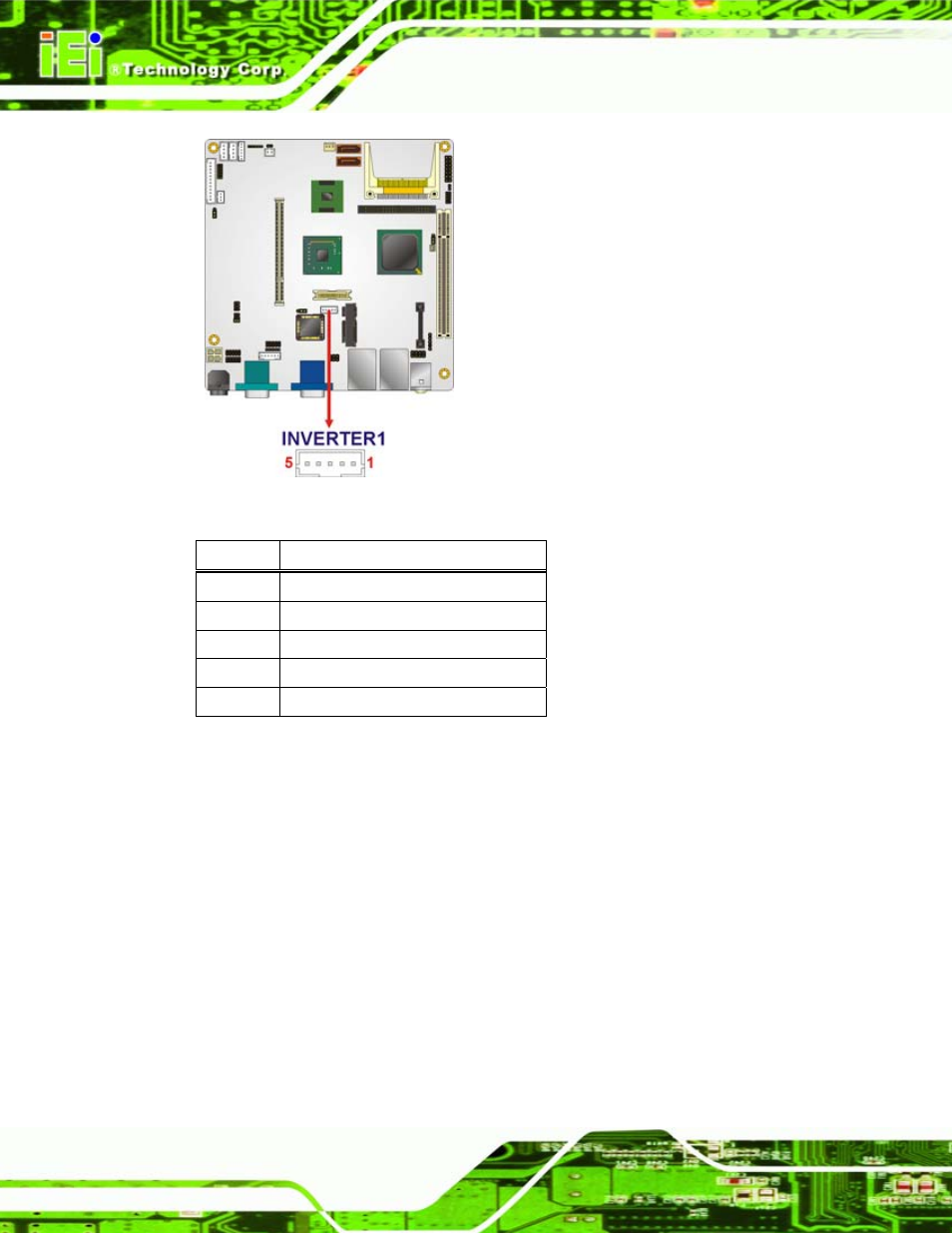

Figure 4-10: LCD Backlight Connector Pinout Locations

Pin No.

Description

1 Brightness

2 GND

3 12

V

4 GND

5 Backlight

enable

Table 4-9: LCD Backlight Connector Pinouts

4.2.10 LED Connector

CN Label:

J3

CN Type:

6-pin box header

CN Location:

See Figure 4-11

CN Pinouts:

See Table 4-10

The LED connector connects to LED indicators showing the status of the connected UPS

battery.
