eKINO-945GSE Motherboard
Page 82
5.9.5 Parallel Port Cable without Bracket
The optional parallel port (LPT) cable respectively connects the on-board LPT 26-pin box
header to an external LPT device (like a printer). The cable comprises a 26-pin female
header, to be connected to the on-board LPT box-header, on one side and on the other
side a standard external LPT connector. To connect the LPT cable, please follow the
steps below.
Step 1: Locate the connector. The LPT connector location is shown in Chapter 4.
Step 2: Align the connectors. Correctly align pin 1 on the cable connector with pin 1 on
the eKINO-945GSE LPT box-header connector. See Figure 5-10.
Step 3: Insert the cable connectors . Once the cable connector is properly aligned with
the 26-pin box-header connector on the eKINO-945GSE, connect the cable
connector to the on-board connector. See Figure 5-10.

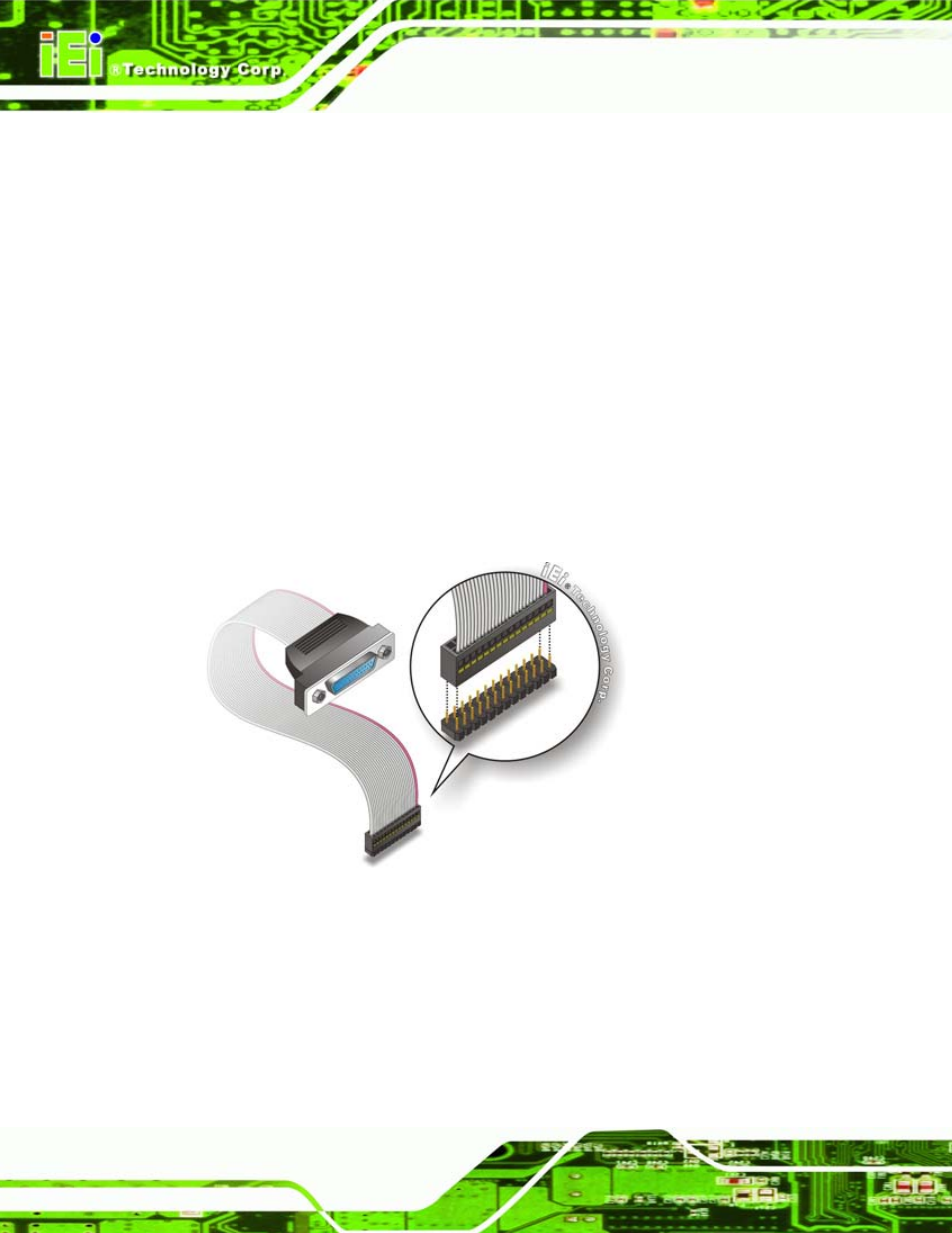

Figure 5-10: LPT Cable Connection
Step 4: Attach the LPT connector to the chassis. To secure the LPT interface
connector to the chassis please refer to the installation instructions that came
with the chassis.
