eKINO-945GSE Motherboard
Page 84
5.10.1 LAN Connection (Single Connector)
There are two external RJ-45 LAN connectors. The RJ-45 connectors enable connection
to an external network. To connect a LAN cable with an RJ-45 connector, please follow
the instructions below.
Step 6: Locate the RJ-45 connectors. The locations of the USB connectors are shown
in Chapter 4.
Step 7: Align the connectors. Align the RJ-45 connector on the LAN cable with one of
the RJ-45 connectors on the eKINO-945GSE. See
9
Figure 5-12.

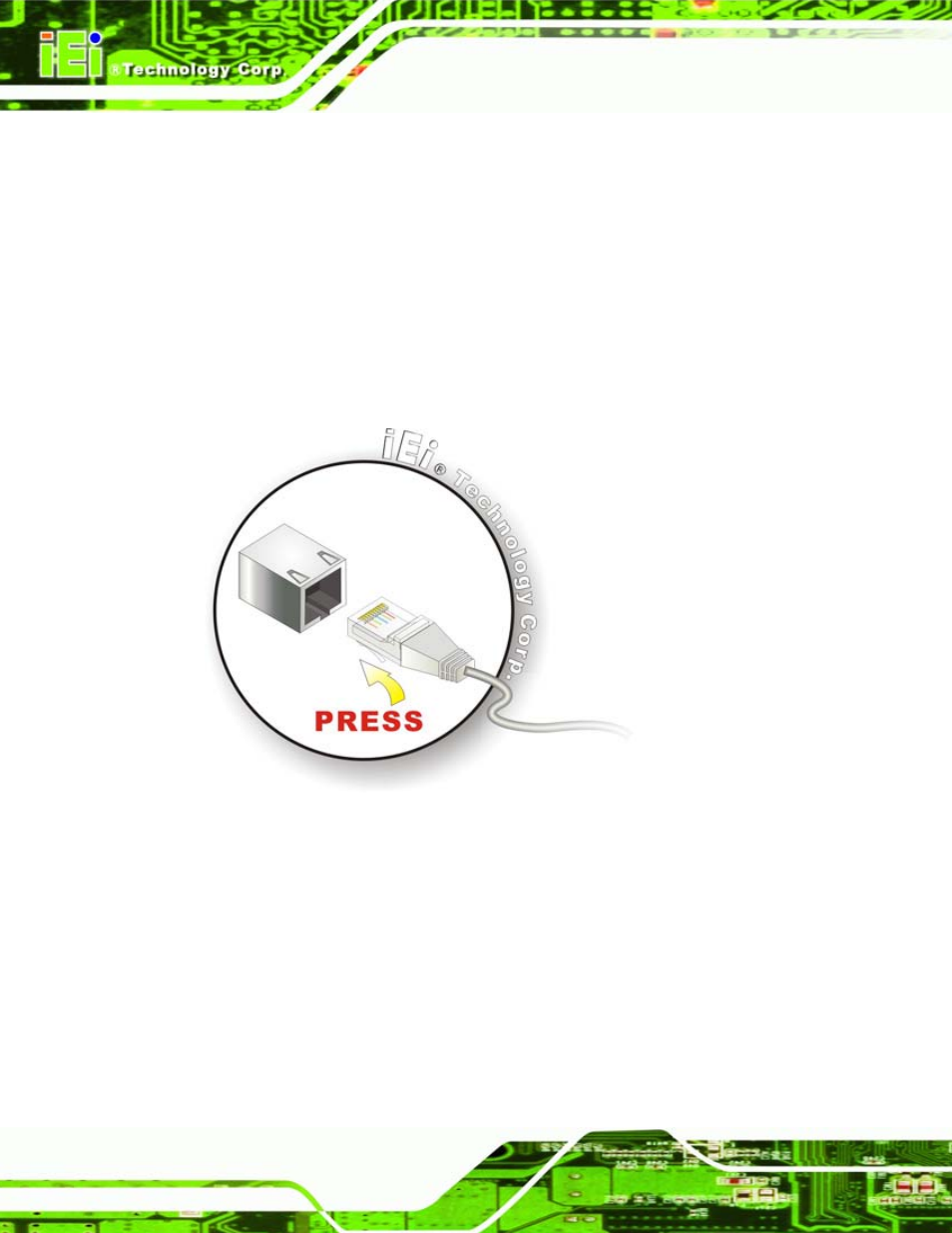

Figure 5-12: LAN Connection
Step 8: Insert the LAN cable RJ-45 connector. Once aligned, gently insert the LAN
cable RJ-45 connector into the onboard RJ-45 connector. Step 0:
5.10.2 PS/2 Y-Cable Connection
The eKINO-945GSE has a PS/2 connector on the external peripheral interface panel. The
dual PS/2 connector is connected to the PS/2 Y-cable that came with the eKINO-945GSE.
One of the PS/2 cables is connected to a keyboard and the other to a mouse to the
system. Follow the steps below to connect a keyboard and mouse to the eKINO-945GSE.
