eKINO-945GSE Motherboard

Page 39

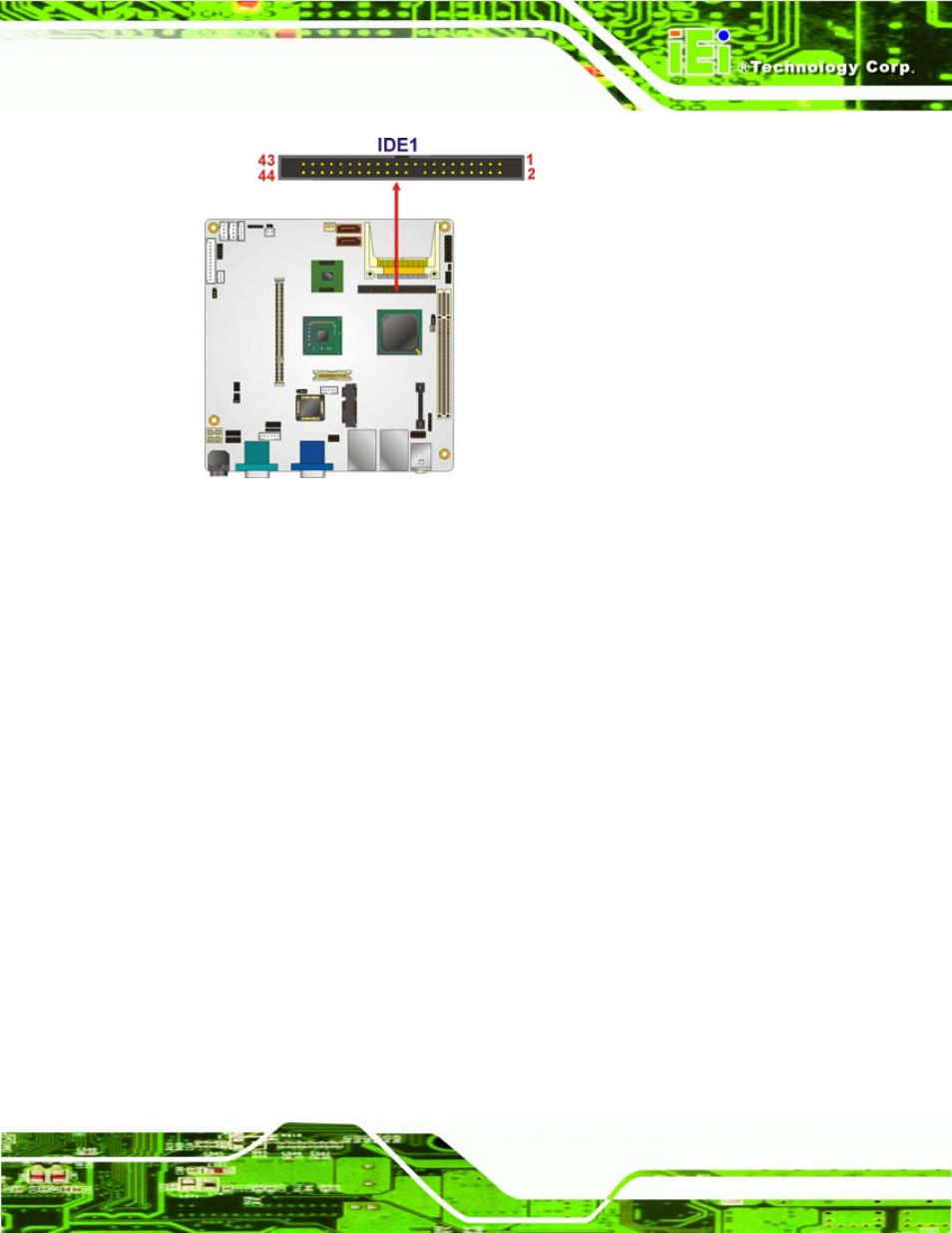

Figure 4-7: IDE Device Connector Locations

4.2.7 Infrared Interface Connector

CN Label:

IR1

CN Type:

5-pin header (1x5)

CN Location:

See

8

Figure 4-8

CN Pinouts:

See

8

Table 4-7

The infrared interface connector supports both Serial Infrared (SIR) and Amplitude Shift

Key Infrared (ASKIR) interfaces.
