eKINO-945GSE Motherboard
Page 45
Pin No. Description Pin No. Description
29 LCDVCC 30 LCDVCC
Table 4-11: LVDS LCD Port Connector Pinouts
4.2.12 MCU LAN Connector
CN Label: J10
CN Type: 10-pin pin header
CN Location: See Figure 4-13
CN Pinouts: See Table 4-12
The MCU LAN connector allows remote monitoring of the UPS MCU.

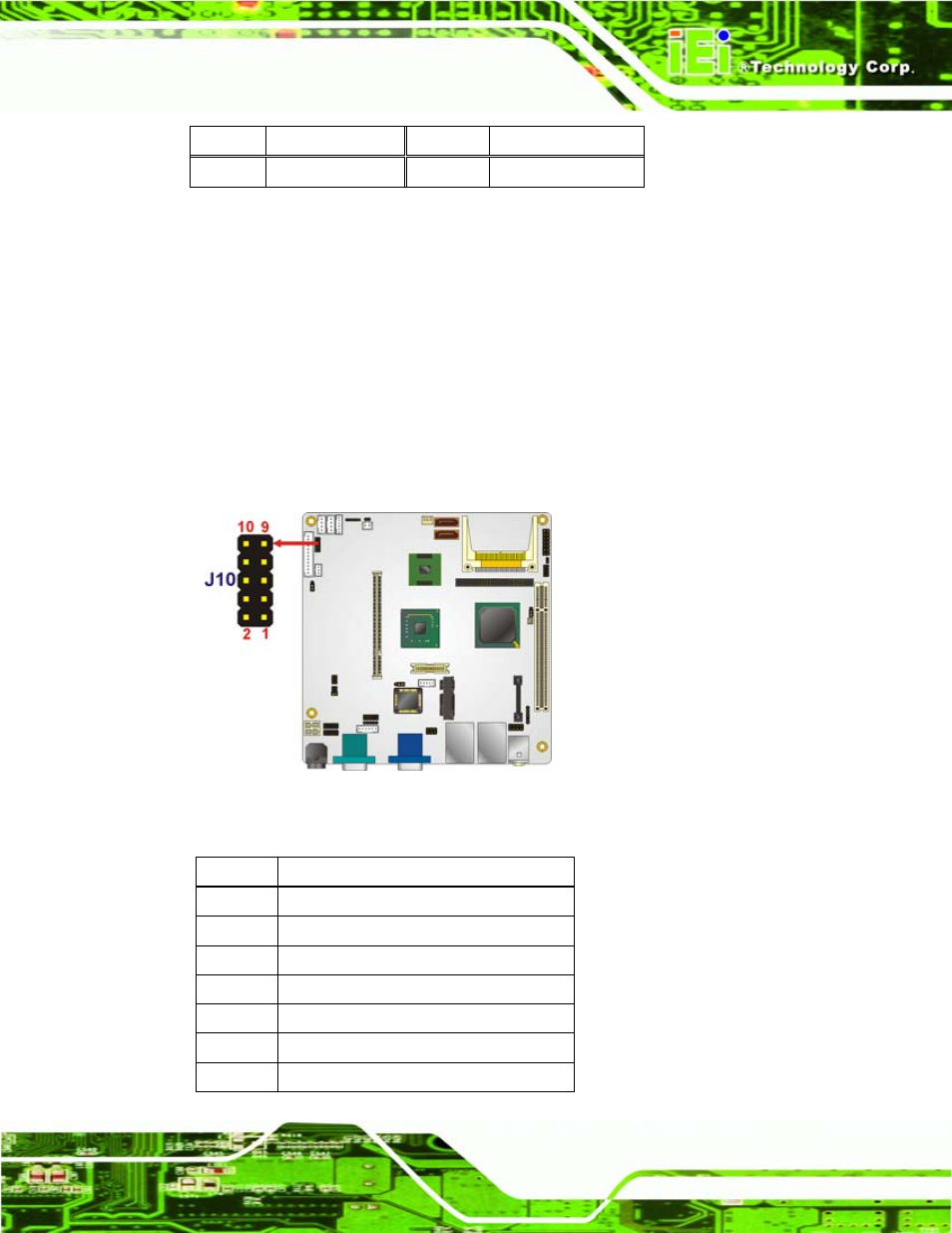

Figure 4-13: MCU LAN Connector Location
Pin No. Description
1 N/C
2 N/C
3 RX+
4 RX-
5 N/C
6 Pair 3
7 N/C
