eKINO-945GSE Motherboard

Page 70

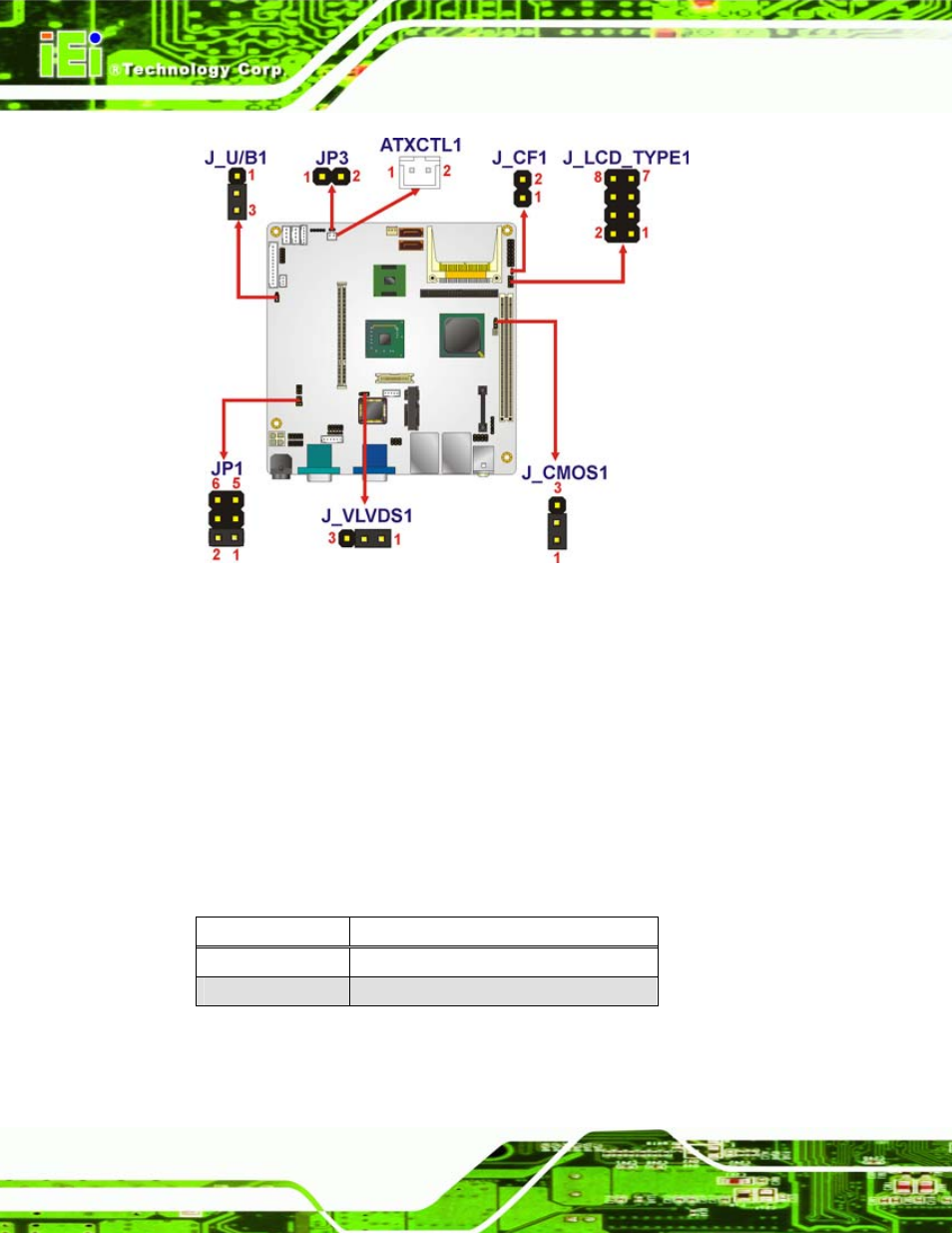

Figure 5-4: Jumpers

5.7.1 AT/ATX Selection

Jumper Label:

ATXCTL1

Jumper Type:

2-pin header

Jumper Settings:

See Table 5-2

Jumper Location:

See Figure 5-4

The AT/ATX Power Selection jumper specifies the systems power mode as AT or ATX.

Power Selection jumper settings are shown in Table 5-2.

Pin Setting

Description

Short

Use AT power

Open

Use ATX power

Table 5-2: AT/ATX Power Selection Jumper Settings
