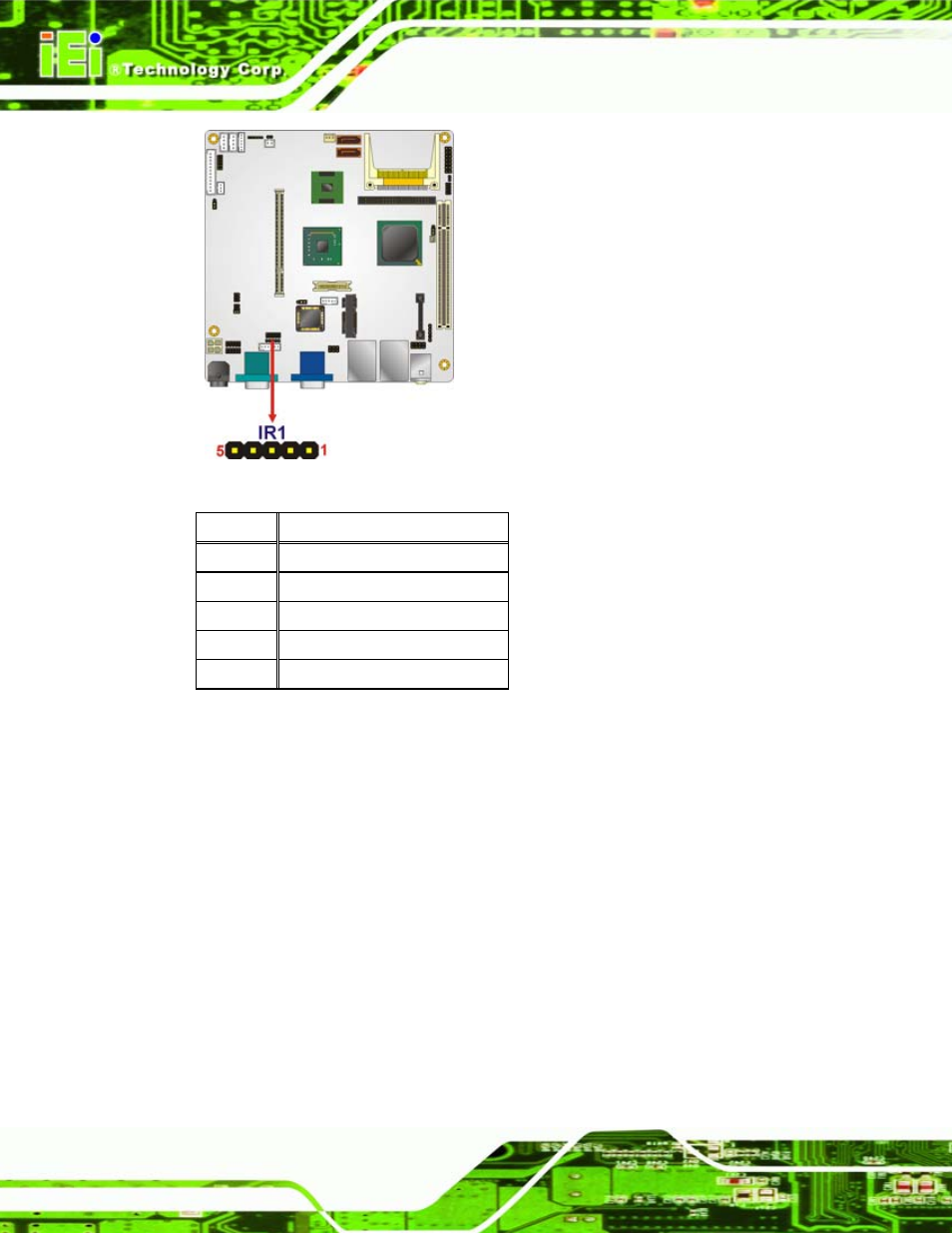

Figure 4-8: Infrared Connector Pinout Locations

Pin No.

Description

1 VCC

2 NC

3 IR-RX

4 GND

5 IR-TX

Table 4-7: Infrared Connector Pinouts

4.2.8 Keyboard/Mouse Connector

CN Label:

MS/KB1

CN Type:

6-pin box header (1x6)

CN Location:

See Figure 4-9

CN Pinouts:

See Table 4-8

The keyboard and mouse connector is for connecting a PS/2 keyboard, PS/2 mouse, or

both, to the board.
