eKINO-945GSE Motherboard

Page 31

4.1 Peripheral Interface Connectors

This chapter outlines all internal and external connectors on the eKINO-945GSE.

4.1.1 Layout

8

Figure 4-1 shows the on-board peripheral connectors, rear panel peripheral connectors

and on-board jumpers.

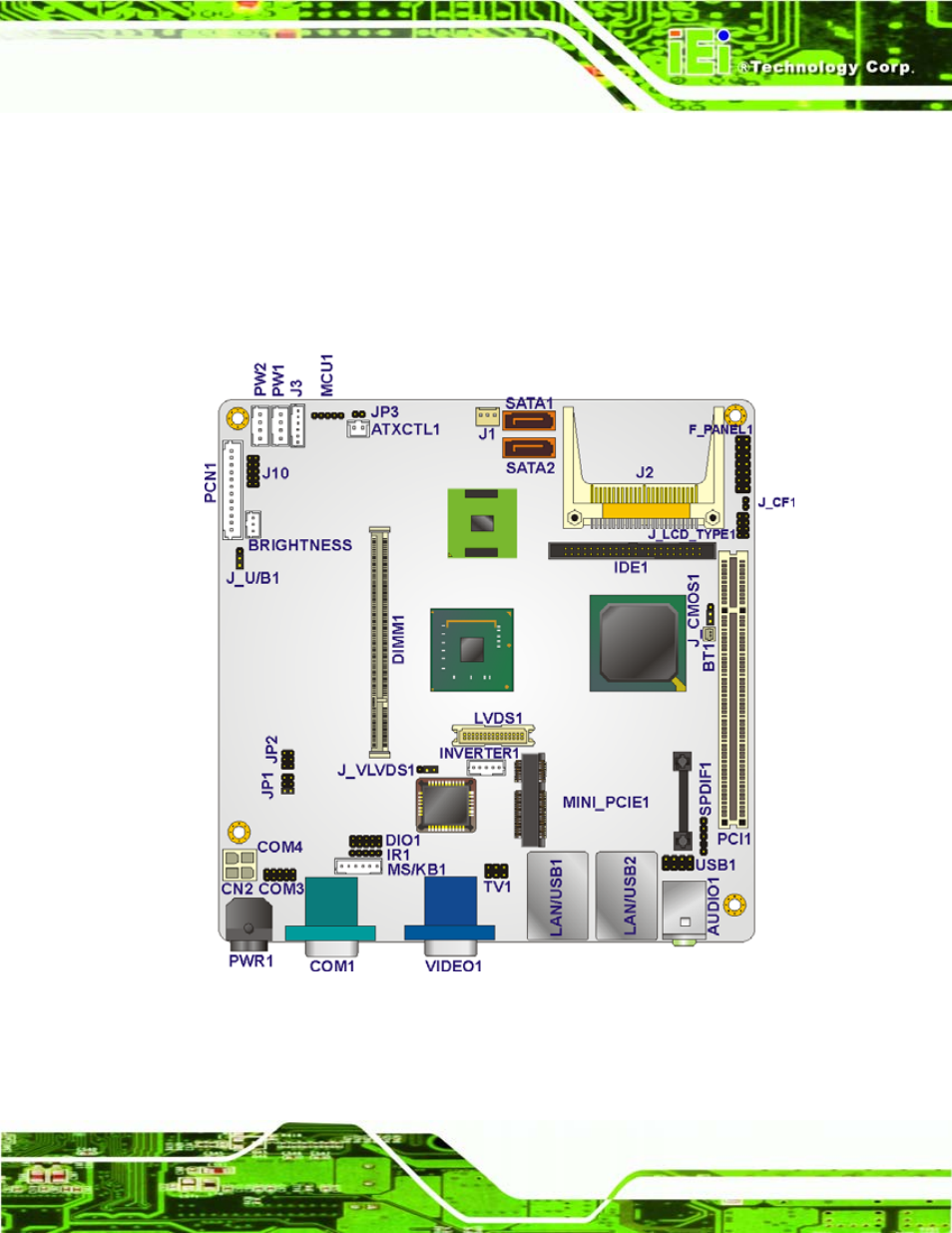

Figure 4-1: Connector and Jumper Locations
