eKINO-945GSE Motherboard

Page 35

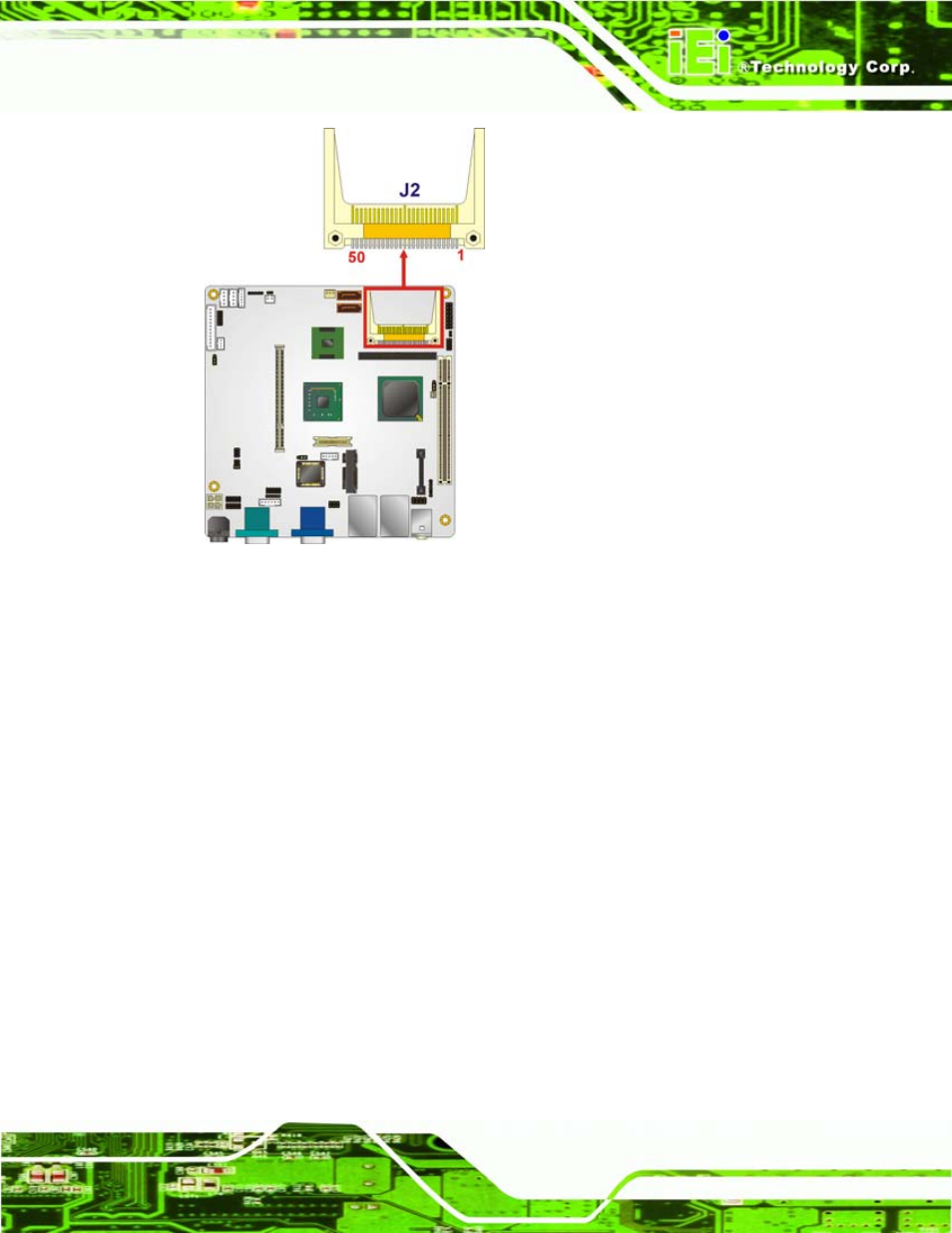

Figure 4-3: CF Card Socket Location

4.2.3 Digital I/O Connector

CN Label:

DIO1

CN Type:

10-pin header (2x5)

CN Location:

See Figure 4-4

CN Pinouts:

See Table 4-4

The digital input/output connector is managed through a Super I/O chip. The DIO

connector pins are user programmable.
