Page 95

eKINO-945GSE Motherboard

Page 79

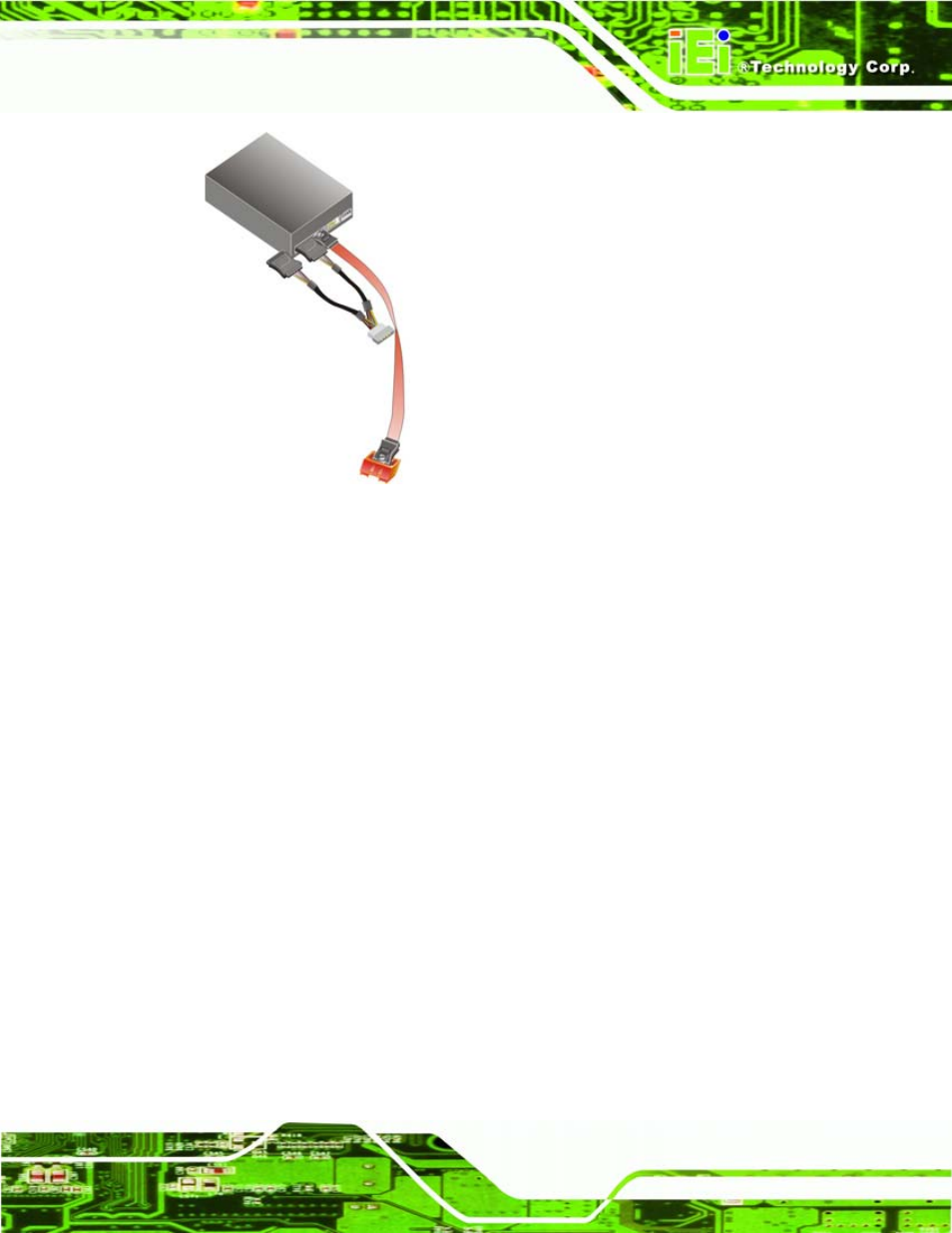

Figure 5-7: SATA Power Drive Connection

5.9.3 Dual RS-232 Cable with Slot Bracket

The dual RS-232 cable slot connector consists of two connectors attached to two

independent cables. Each cable is then attached to a D-sub 9 male connector that is

mounted onto a slot. To install the dual RS-232 cable, please follow the steps below.

Step 5:

Locate the connectors. The locations of the RS-232 connectors are shown in

Chapter 3.

Step 6:

Insert the cable connectors. Insert one connector into each serial port box

headers. See Figure 5-8. A key on the front of the cable connectors ensures the

connector can only be installed in one direction.
