Getting Started with WaveStation

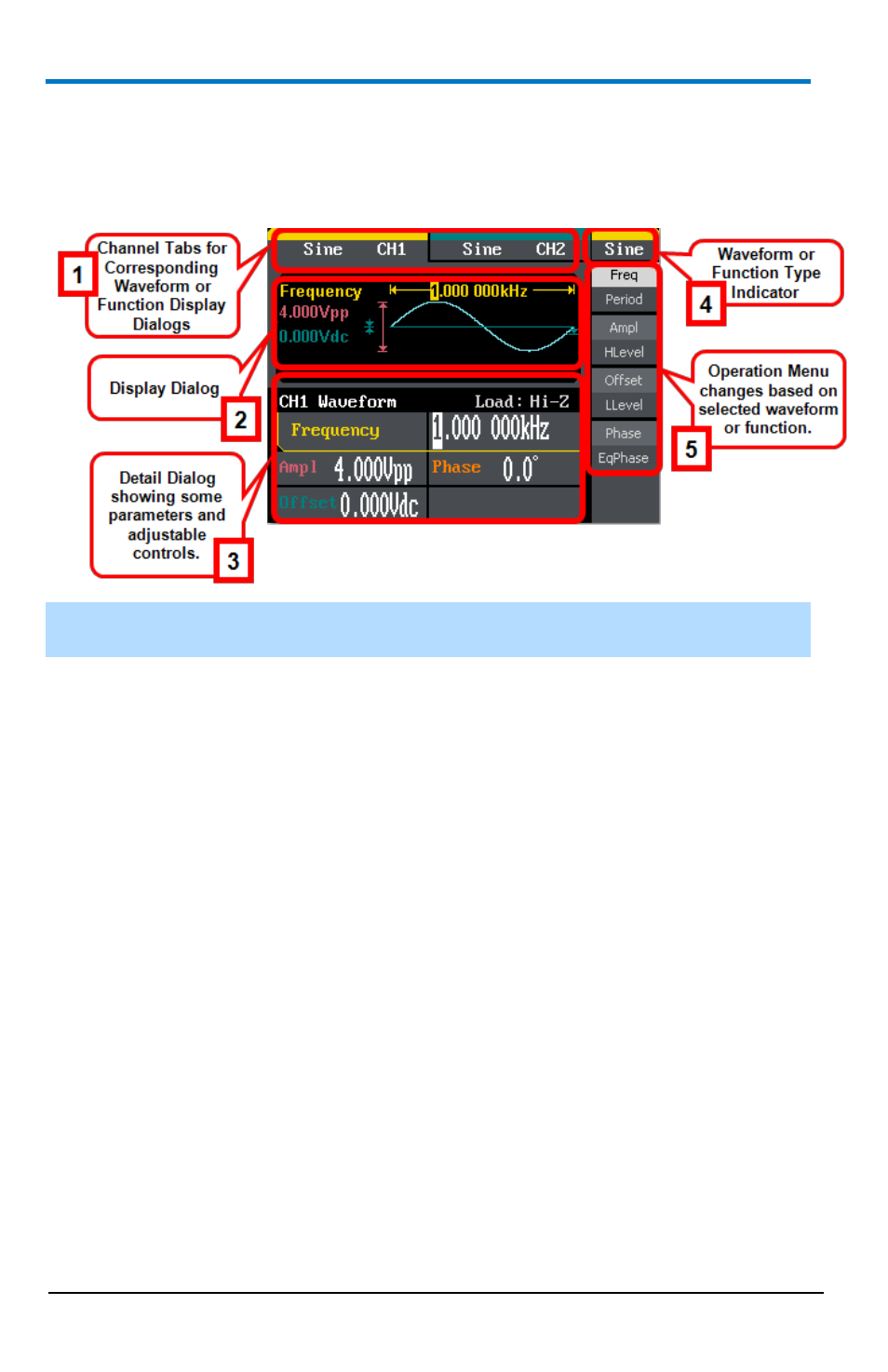

The WaveStation Interface
NOTE: The default signal is a Sine wave as each channel tab and in the upper-right
corner of the display show.
1. Channel Tabs - The channel tabs display the currently chosen Waveform
or Function type and, when selected, show their corresponding Display
and Detail dialog.
2. Display Dialog - Shows a rendered waveform or modulated waveform
display of your generated signal and some additional waveform details.
3. Detail Dialog - Shows even more data regarding specific parameters for
your selected Waveform or Function.
4. Waveform/Function Type Indicator - When using the Waveform
buttons, shows the waveform type for the corresponding waveform
channel selected. Waveform types include Sine, Square, Ramp, Pulse,
Noise, and Arb. When using the Function buttons, shows the selected
function from Modulate, Sweep, Burst, Save/Recall, Utility, and Help.
5. Operation Menu - This menu changes based on the selected Waveform
or Function chosen. Refer to more detailed corresponding coverage later
in this manual for more information.
