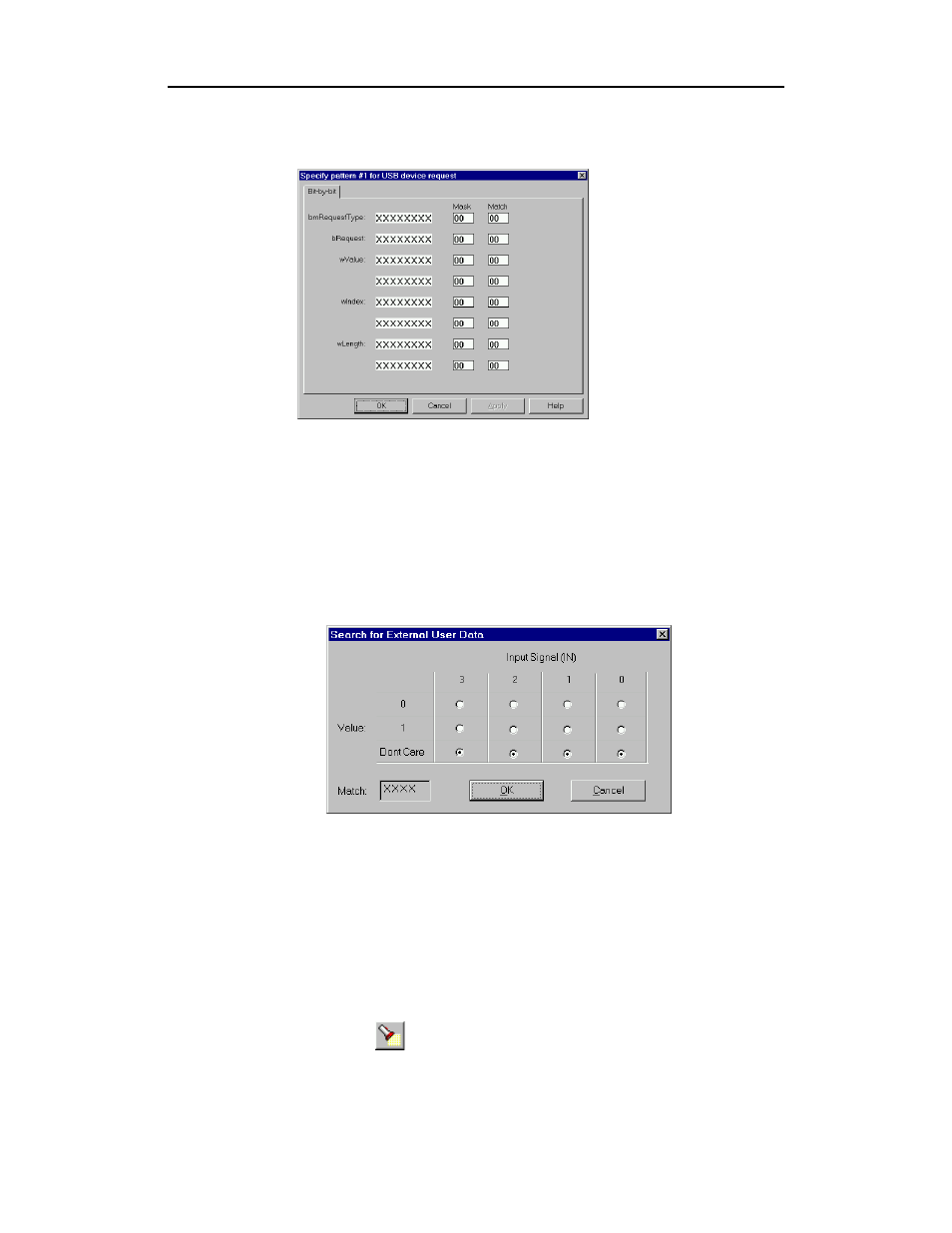

Device Request
(a) Enter information in binary (i.e., 1 or 0).
(b) Enter “X” when you don’t care about the binary value.
(c) Enter Mask and Match values in hexadecimal. When selecting a
hexadecimal value, take care to select values so that a 1-bit equals a
“care” value.
(d) Click OK when you have completed editing these values.
•
User Data
Select a Value or Don’t Care for the first four External User Data
signals from the Breakout Board.
Find...
The Find feature allows you to set complex search criteria for finding a specific
event.
Step 1 Select Find... under Search on the Menu Bar
OR
Click in the Tool Bar.
