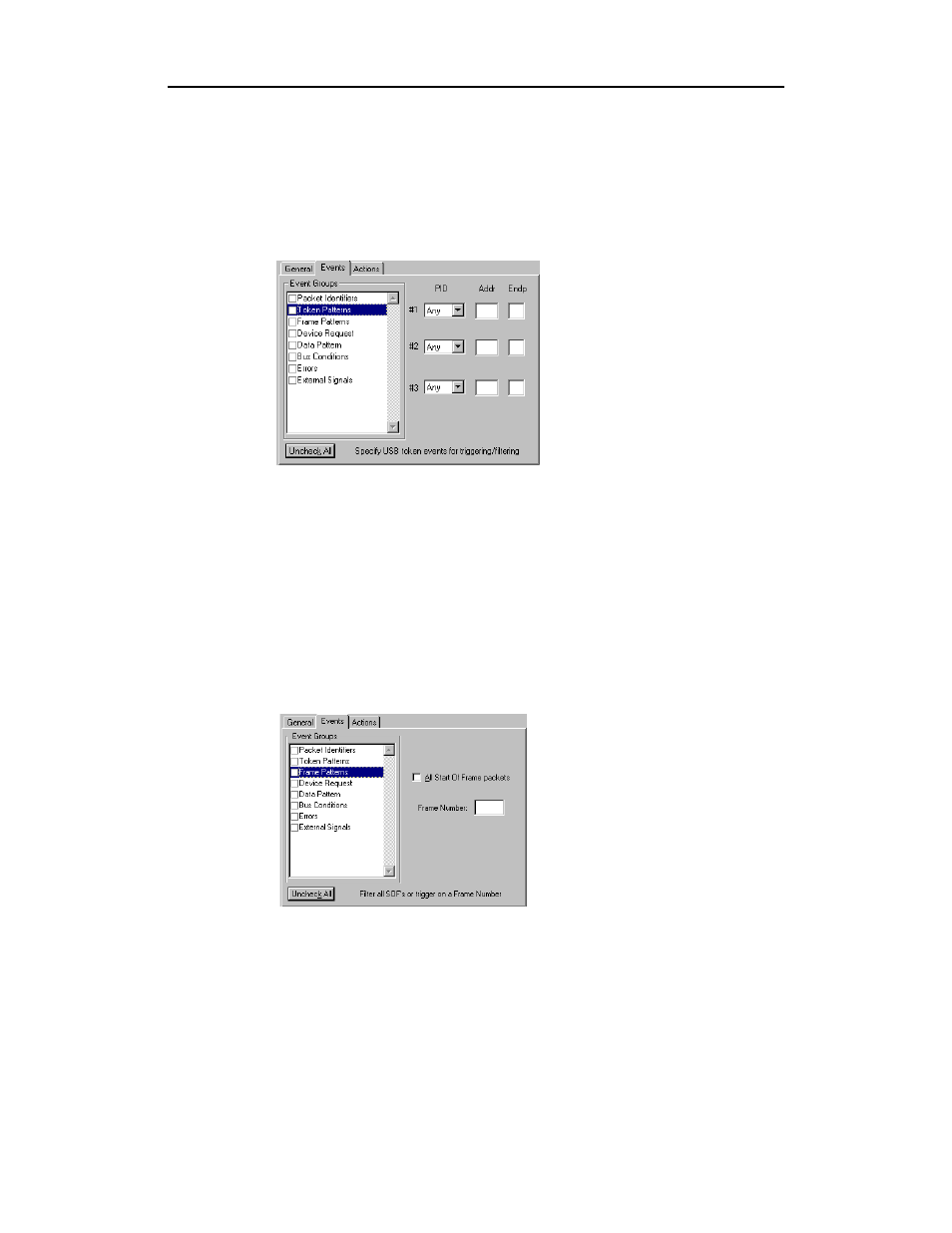

Token Patterns

Step 1

Select Token Patterns under Event Groups.

Step 2

In the Token Patterns fields, specify up to three combinations of
Address/Endpoint with any of the token PIDs. They can be triggered on
or filtered in/out. The first two can be sequenced to enable one another.

Frame Patterns

Step 1

Select Frame Patterns under Event Groups.

Step 2

Identify frame patterns you want either to filter out of a Trace View or to
use as a Trigger.

Step 3

Select either All Start of Frame packets (SOF) to be filtered out or
specify the Frame Number of a frame to trigger on.
