53
Chief User’s Manual CATC Version 1.7

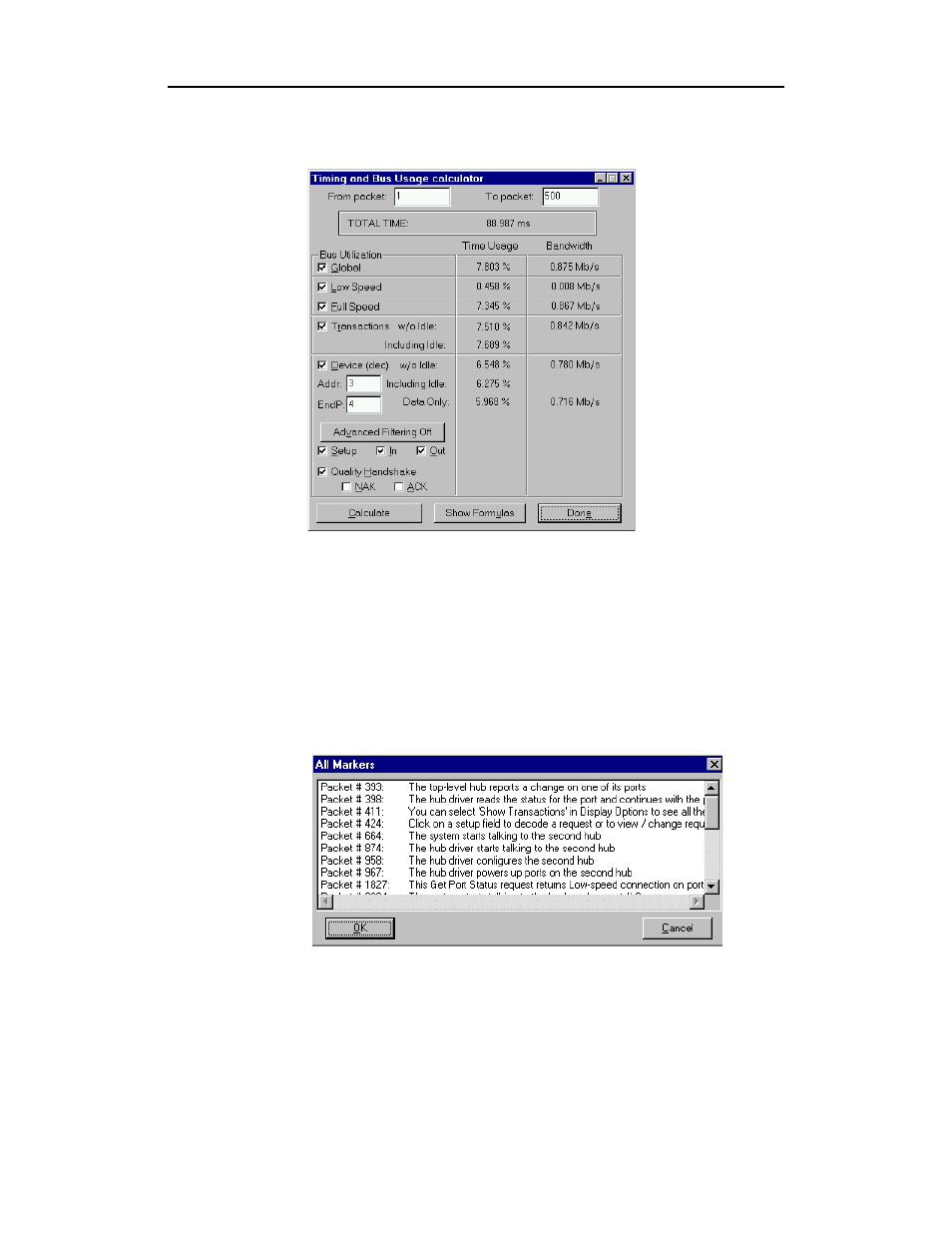

The Timing and Bus Calculations window appears.
Step 3 Enter the necessary data to select the values to be calculated.
Step 4 Click Calculate.
Measure Time from Marker
You can make a quick measurement from a specific packet to any previously
entered marker.
Step 1 Click on Time from Marker.
The All Markers window appears.
Step 2 Select the Marker you want to measure to.
Step 3 Click OK.
