49
Chief User’s Manual CATC Version 1.7

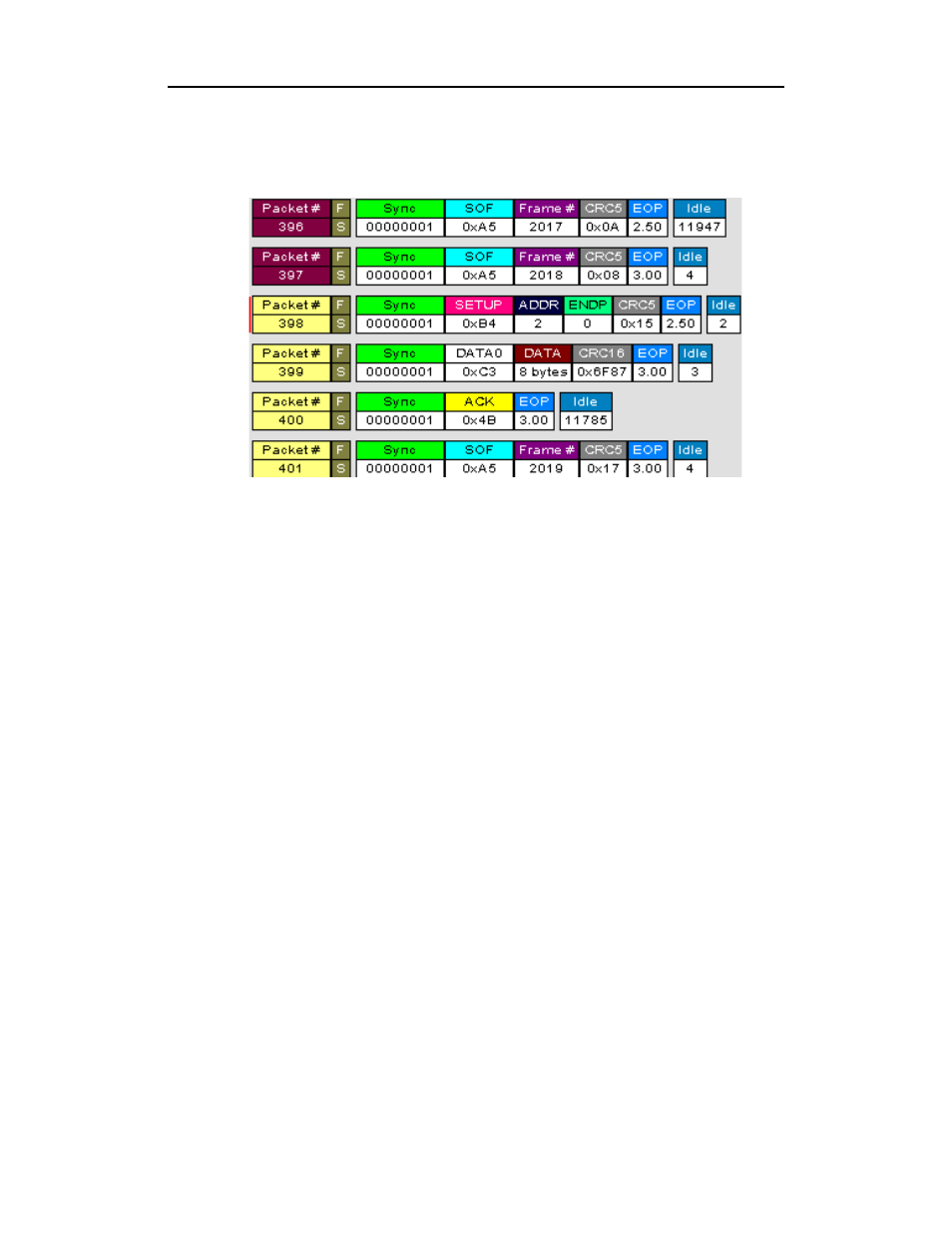

Chapter 7: Reading a CATC Trace
Trace View Features
• The USB Chief packet view extensively uses color and graphics to fully
document the captured traffic.
• Packets are shown on separate rows, with their individual fields both labeled
and color coded.
• Packets are numbered (sequentially, as recorded), time-stamped (with a
resolution of 83.3ns), and highlighted to show the transmitted speed
(low-speed or full-speed).
• Display formats can be named and saved for later use.
• Pop-up Tool Tips annotate packet fields with detailed information about their
contents.
• Data fields can be collapsed to occupy minimal space in the display (which can
in turn be zoomed in and out to optimize screen utilization).
• The display software can operate independent of the hardware and so can
function as a stand-alone Trace Viewer that may be freely distributed.
