Filters Display Options

Step 1

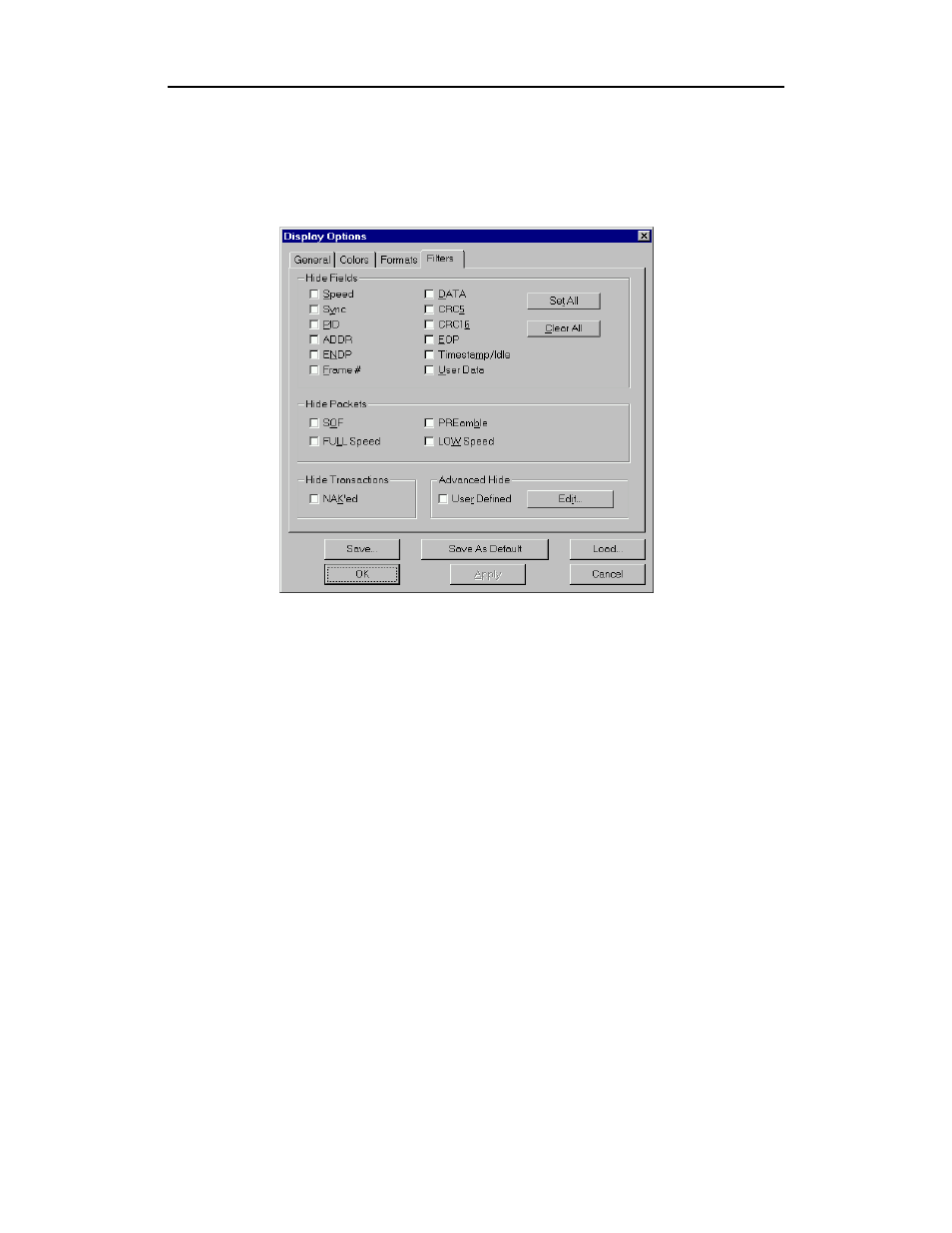

Click the Filters tab on the Display Options window.

Step 2

Use the Filters window to filter (hide) various fields, packets, and
transactions from the Trace View screen. You can modify these settings
anyway you wish to display a specific area of a Trace.

Hide Fields

Choose this option to display or remove the listed fields from the Trace View.

Hide Packets

Choose this option to display or remove the listed packets from the Trace View.

Hide Transactions

Choose this option to display or hide NAK’ed transactions.

Advanced Hide

Use Advanced Hide to establish extremely narrow criteria for hiding Trace
elements.

Step 1

Select User Defined under Advanced Hide.

Step 2

Click Edit.
