Chief User’s Manual CATC Version 1.7

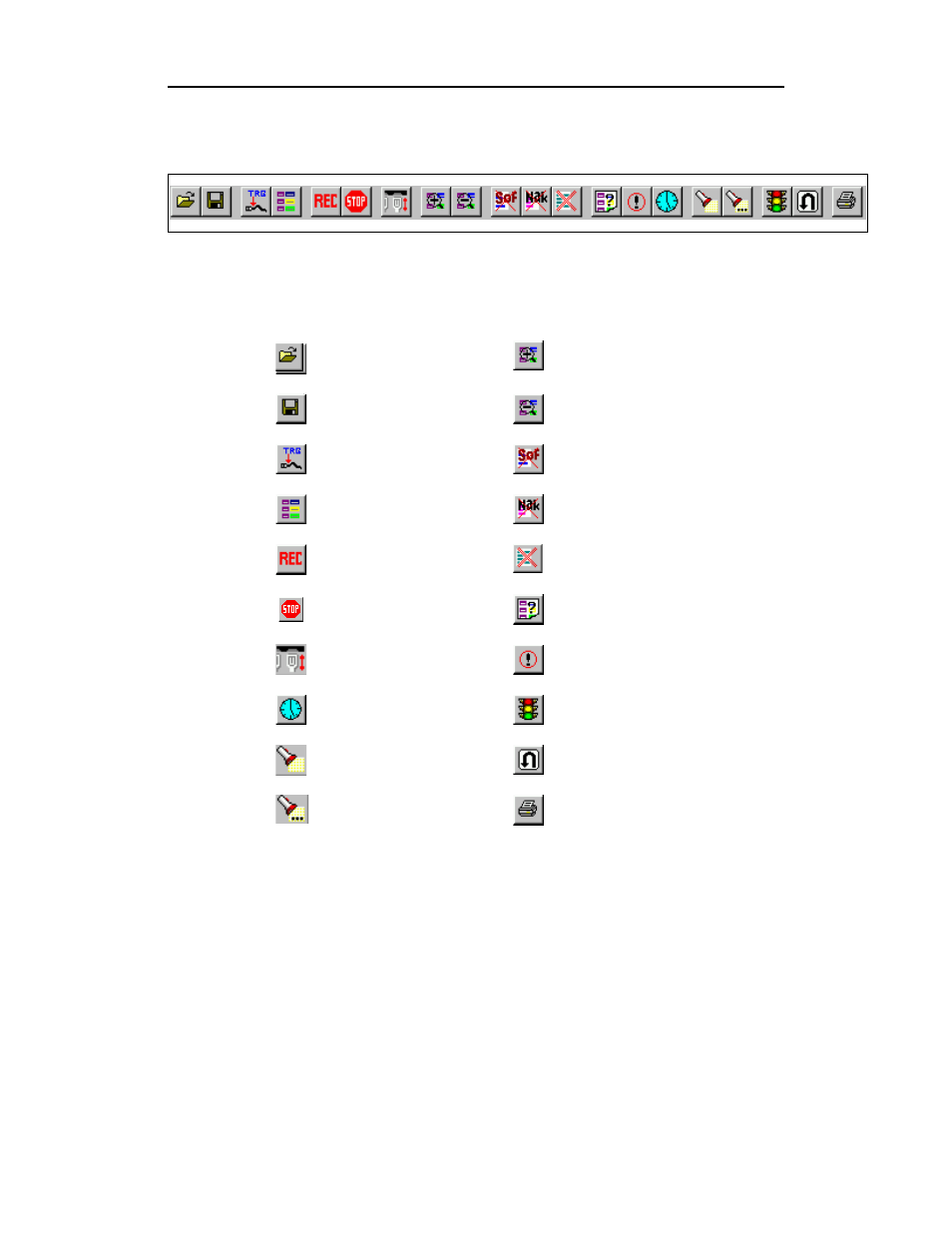

Tool Bar
The Tool Bar provides quick and convenient access to the most popular USB
Chief program functions. Tool tips briefly describe the functionality of each icon
and menu item as the mouse arrow is moved over the icon/item.
Status Bar
The Status Bar is located at the bottom of the main display window. Depending
on the current activity, the bar can be divided into as many as four segments.
Open file Zoom In
Save As Zoom Out
Setup Record Options Hide Start Of Frame
Setup Display Option Hide Nak Handshake
Start Recording Hide Packets
Stop Recording File Information Report
Unplug/Replug Error Summary
Timing Calculations Start/Stop Traffic
Find Packets Repeat Mode
Find Next Print…
