62
Chief User’s Manual CATC Version 1.7

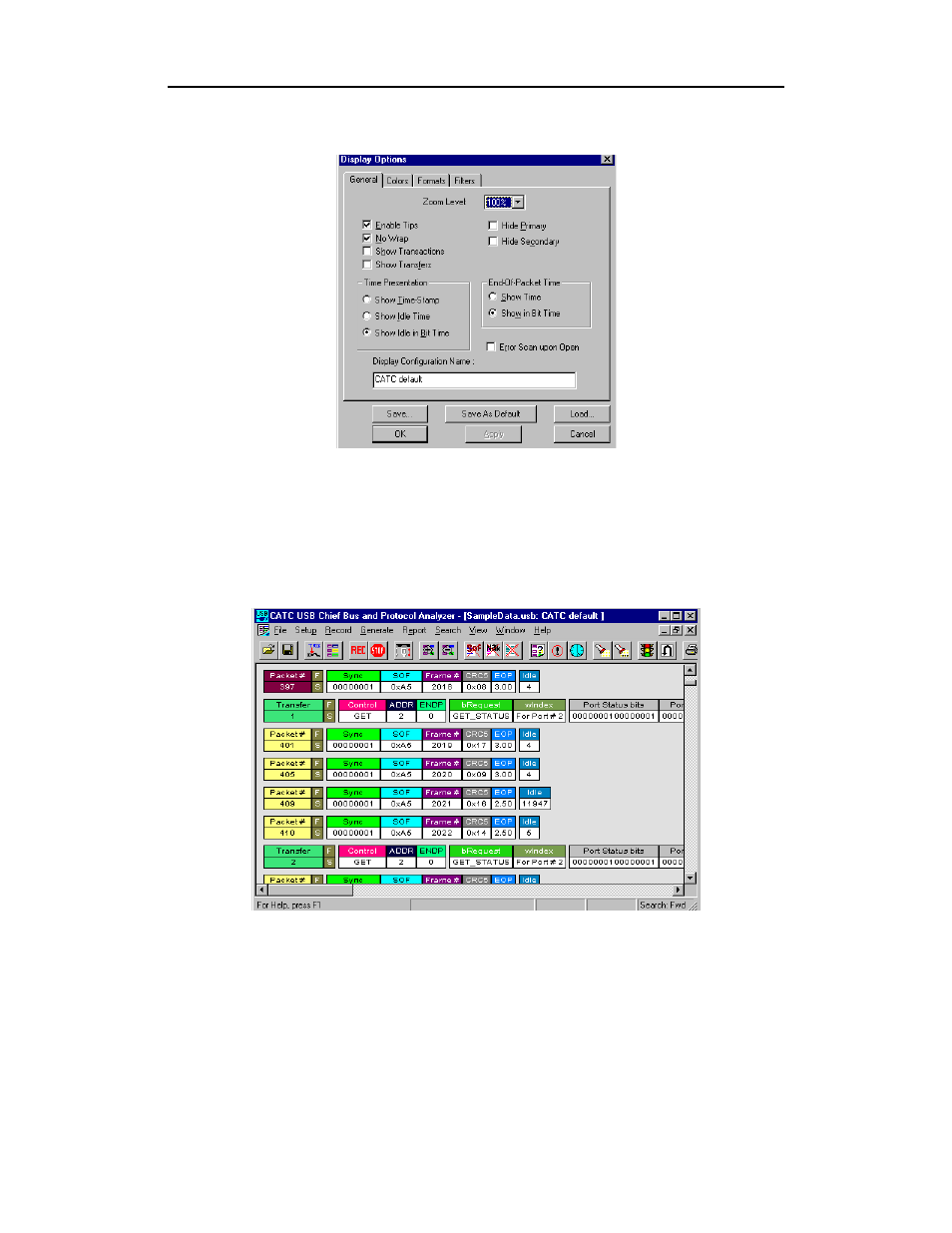

The Display Options window appears:
Step 2 Check Show Transfers.
Step 3 Click OK.
View Decoded Transfers
Once you set Display Options, the Trace View screen is re-drawn to display
decoded transfers in the colors and format you selected.
When you instruct the Analyzer to display USB transfers, the components of each
transfer are collected from the current recording and are grouped below each
decoded transfer. Each transfer row shows a transfer with a unique numeration, a
label, and color-coded decoding of important data.
