62 L4400 User’s Guide
3 Operating and Programming
Locate “InitWithOptions” and change the address string as shown in
the example of Figure 3- 7.
change address string
example source code

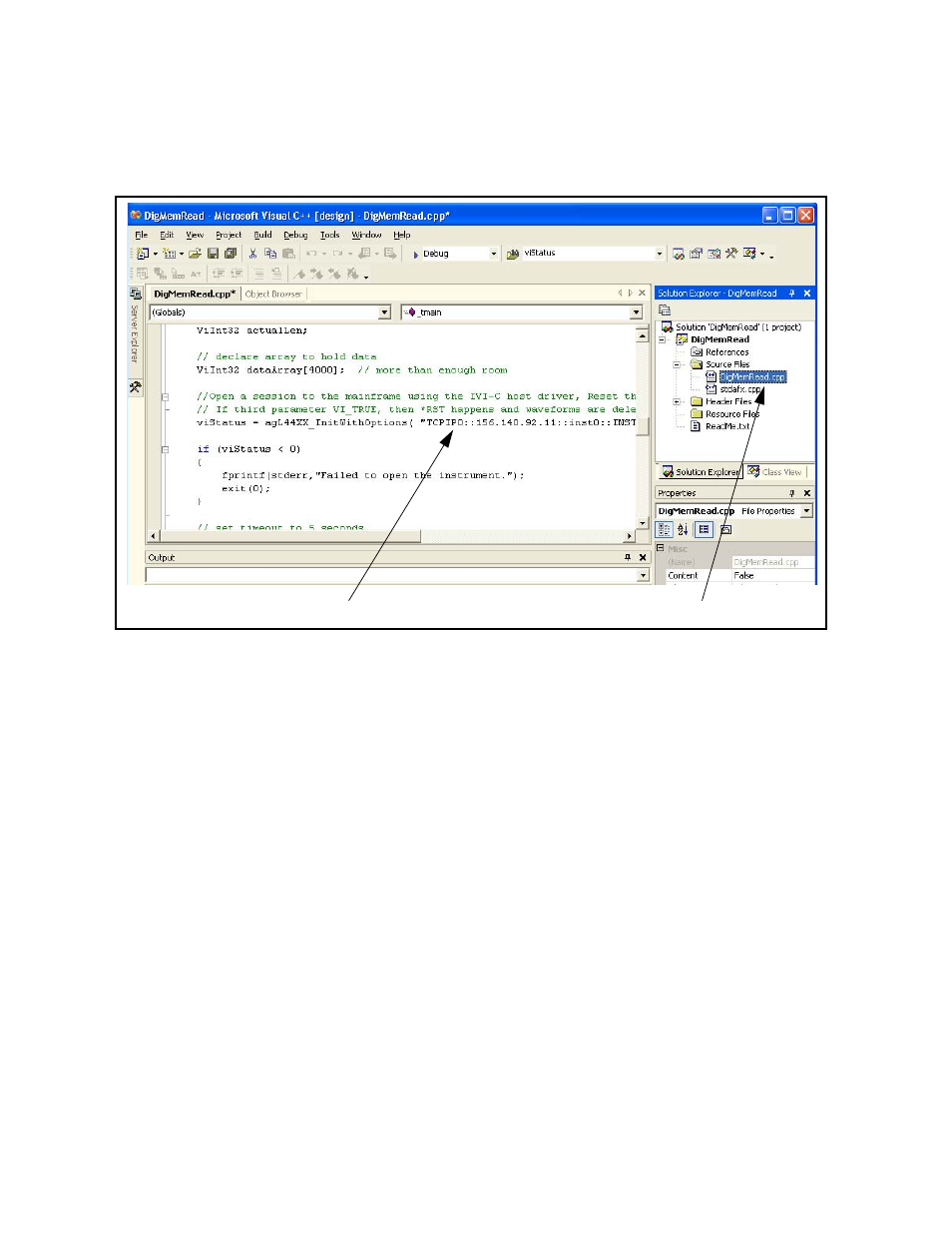

Figure 3-7. Changing the Instrument Address String (IVI-C Programs).
Modifying VISA and VISA COM Examples
Agilent VISA examples are available with the Microsoft Visual C++ 6.0
and Visual Basic 6.0 environments. To modify VISA examples for use
with with your instrument, open the example in the \VISA subdirectory
of the development environment by double- clicking the example name
with the .dsp extension. Once the development environment opens, select
the example source code file (.c extension) of the same name.
