Page 46
34
L4400 User’s Guide
2
Software Installation and Configuration
Adding Instruments to the GPIB Configuration

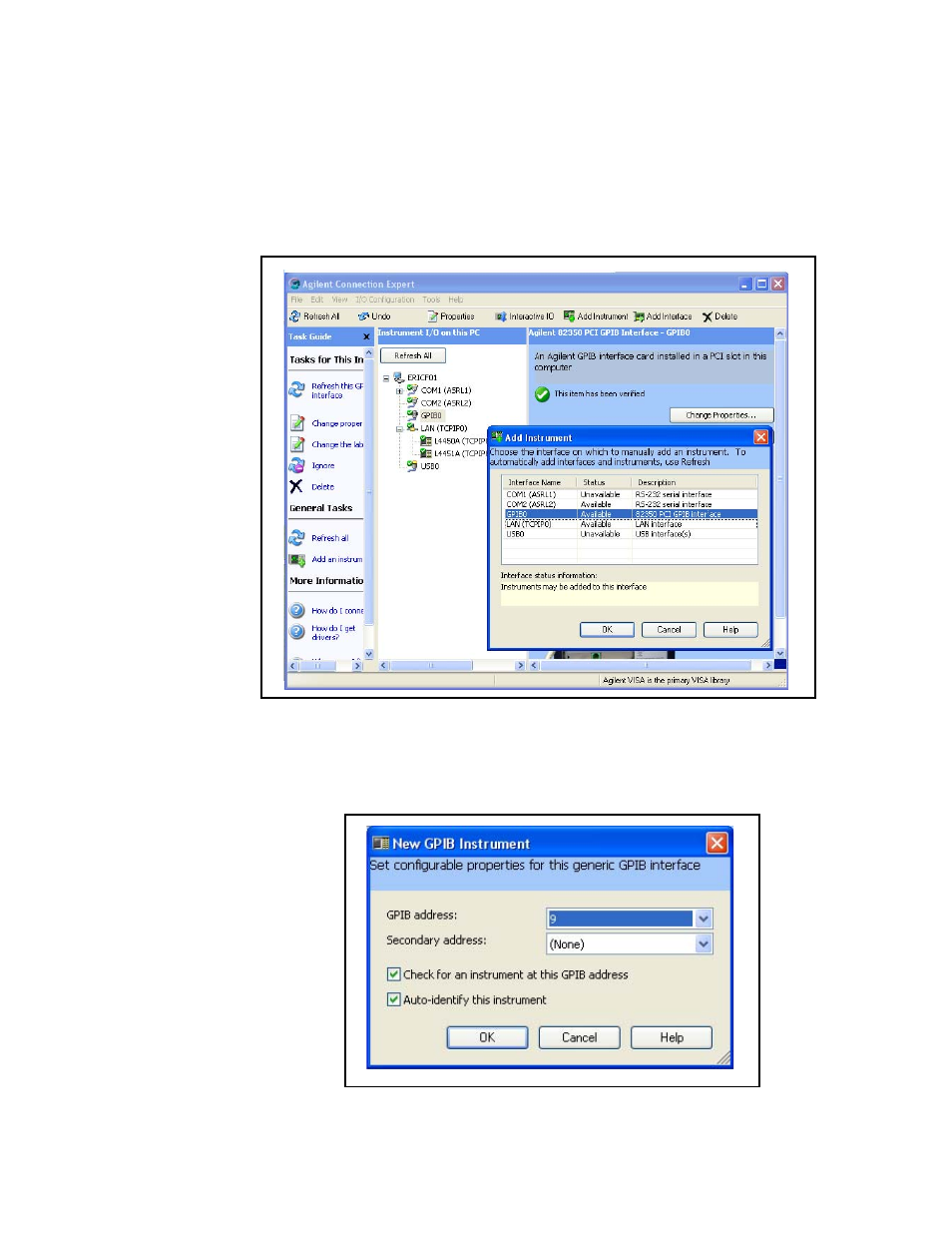

Highlight the GPIB interface (GPIB0) and select “Add Instrument” on the
tool bar. Select the GPIB interface in the “Add Instrument” window and
click ‘OK’.
Figure 2-16. Adding Instruments to the GPIB Interface.
In the ‘configurable properties’ window shown in Figure 2- 17, select GPIB
address 9 and click ‘OK’. This is the factory default address that will be
changed as necessary in the following steps.
Figure 2-17. Specifying the GPIB Address when Adding an Instrument.
