A L4451A and L4452A Calibration Procedures
L4451A Verification
The test connections for verifying the L4451A DAC output current and
voltage using an external DMM are shown in Figures A- 1 and A- 2.
Note that connections are shown for a single channel.
HI
LO
I
HI
LO
DMM
L4451A Terminal Block
Output current verification
twist wires

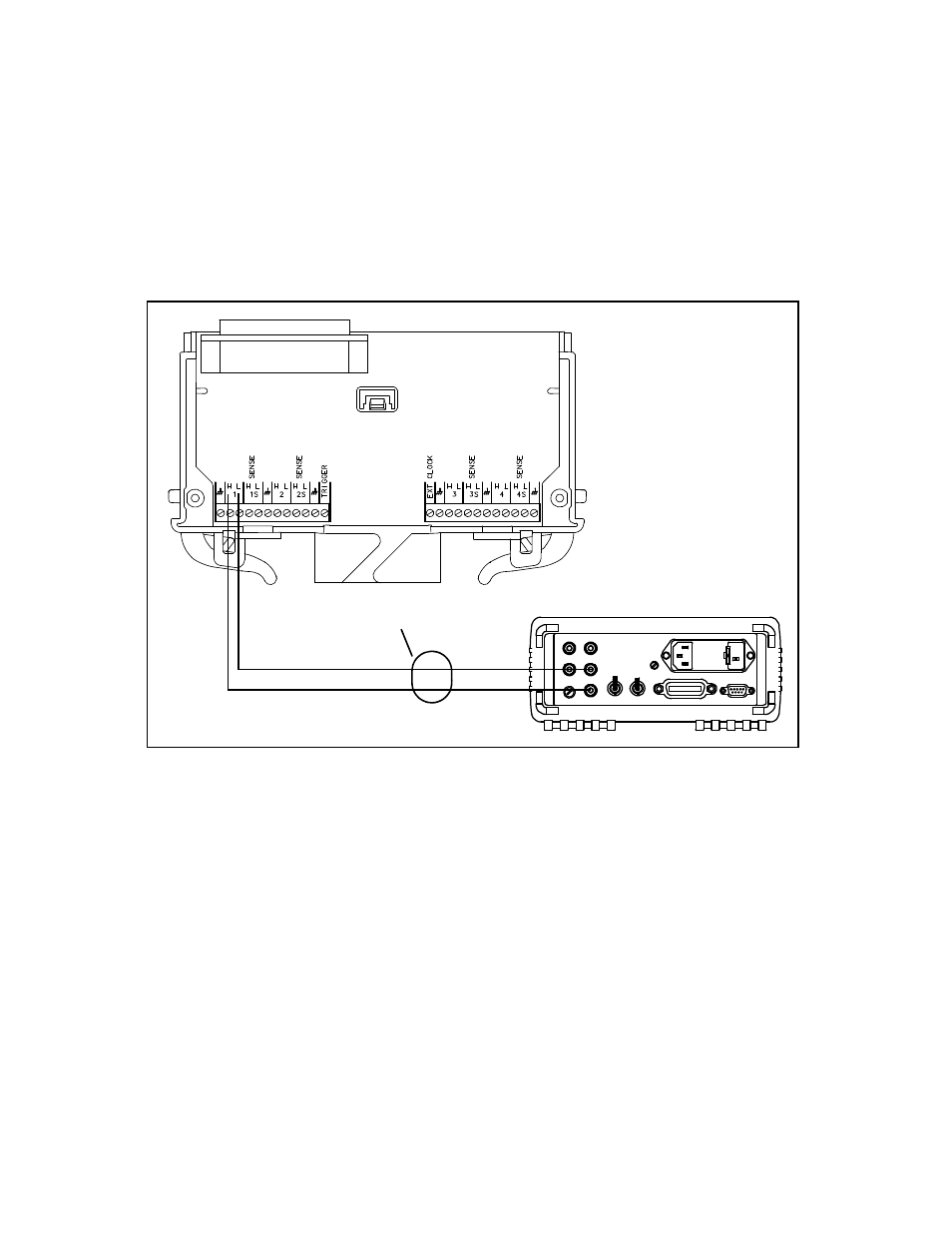

Figure A-1. L4451A Output Current Connections.
