Agilent Technologies L4400 User Manual
Page 55
Software Installation and Configuration
2
L4400 User’s Guide
43
The firmware update process takes several minutes. The instrument’s front
panel ATTN indicator will flash green while the update is in progress.
enter host name
or IP address

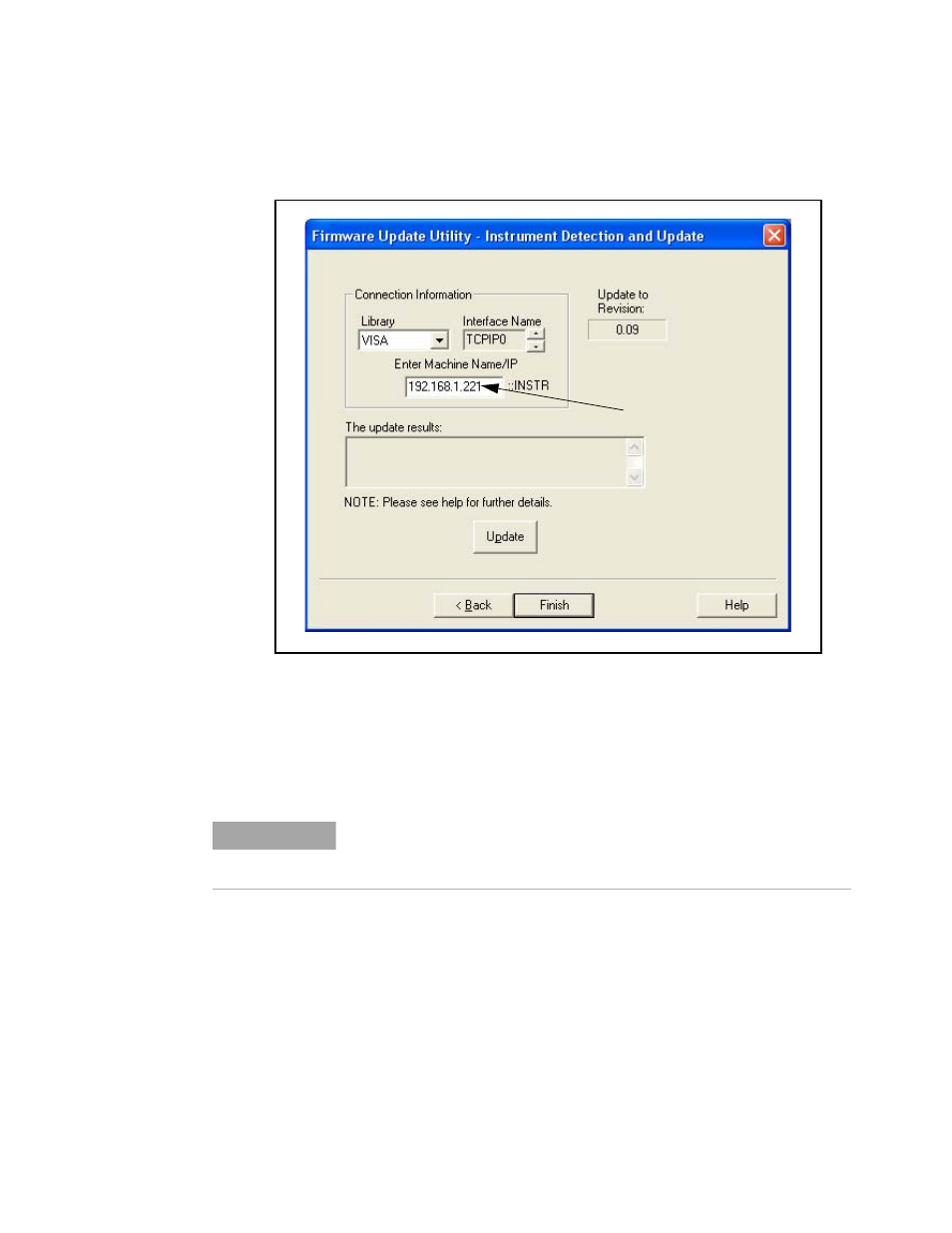

Figure 2-23. Entering the Instrument Host Name or IP Address.
When the update to the instrument carrier firmware is complete, the
results are indicated as shown in Figure 2- 24.
Note that an update of the
instrument sub- assembly firmware may continue for a few moments after
the update results message appears.
Instrument sub-assembly firmware updates are performed automatically
if the current sub-assembly firmware revision is incompatible with the
updated carrier firmware.
N O T E
