Y1155a connections – Agilent Technologies L4400 User Manual
Page 193
LED Connectors
Screw
Terminals
L4445A Microwave Switch/Attenuator Driver
7
L4400 User’s Guide
181

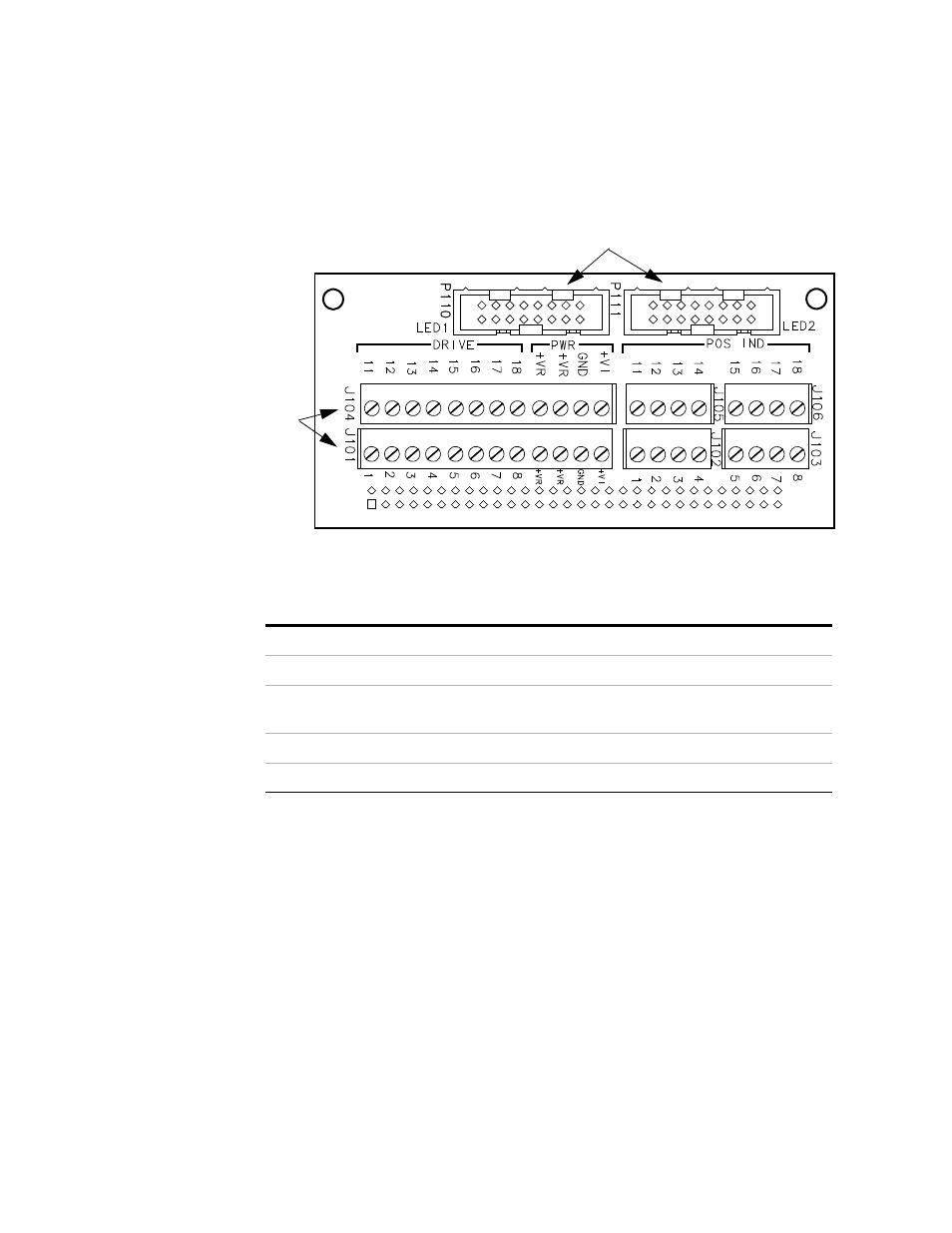

Y1155A Connections
+VR is the Voltage source for the Relay
+VI is the Voltage source for the LED Indicator
876x Switches
Item
Description
Cable Type
3 wire cable, 24 AWG stranded
Y1155A Connector
Screw terminal connection for wire provided on
Y1155A
Switch Connector
Solder wire to switch solder lug
Cable Wiring
Varies with drive option; see switch documentation
