U205
U301
C301
Open
Maintain
5Amp relays
Power Down State
L4437A General Purpose Switch
6
L4400 User’s Guide
129

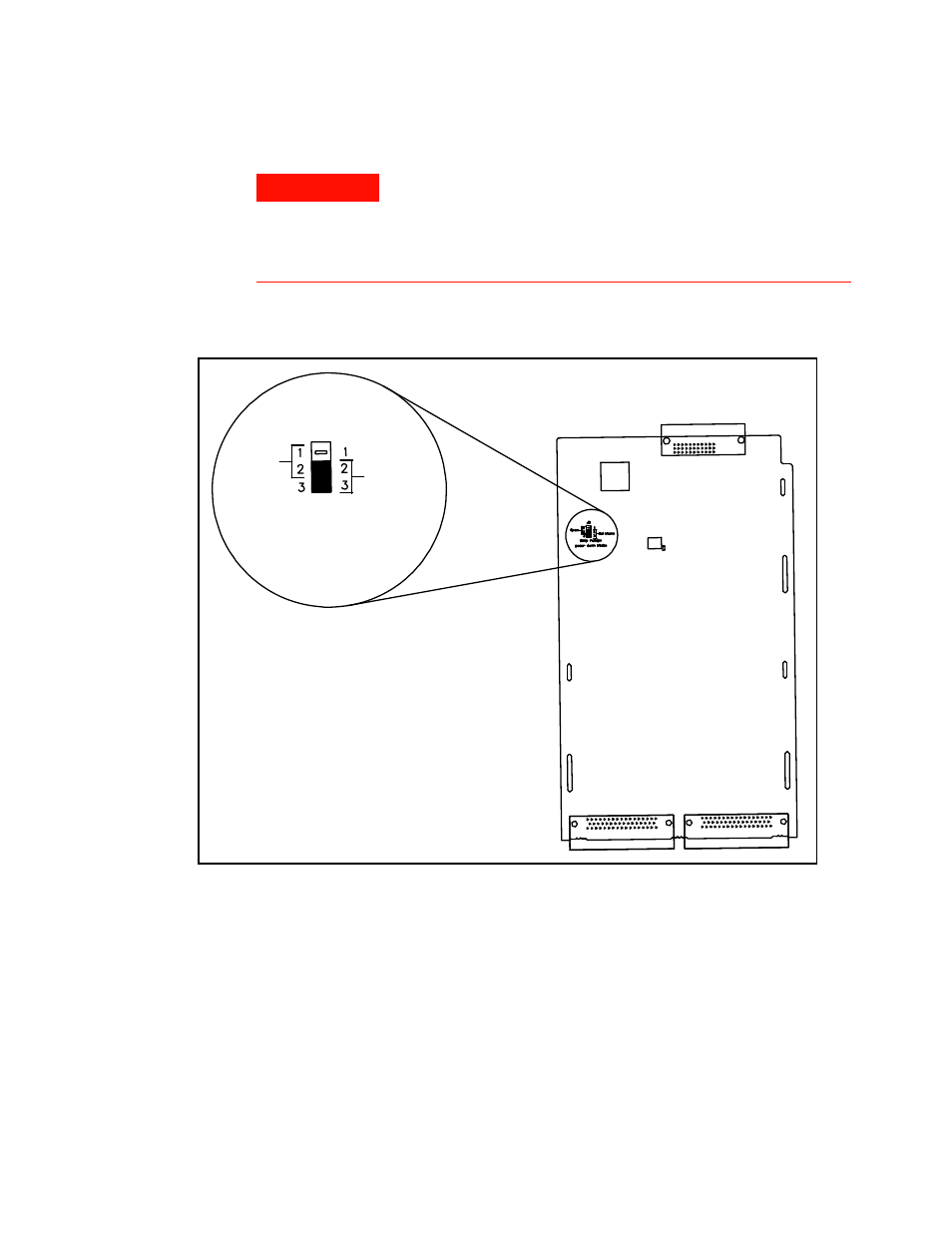

Figure 6-1. 5A Relay Power-Down State Jumper.
WA R N I N G
Do not connect the L4437A directly to a mains power outlet. If it is
necessary to switch a mains voltage or any circuit where a large
inductive load may be switched, you must add signal conditioning
elements to reduce the potential transients before they reach the
instrument.
