L4450A 64-Bit Digital I/O with Memory and Counter
8
L4400 User’s Guide
219
SOUR:MOD:CLOC:FREQ?
You can also set the logic “high” voltage level for external clock output.
For example, the following command sets the output clock level to 4.5 V.
SOUR:MOD:CLOC:LEV 4.5, 1

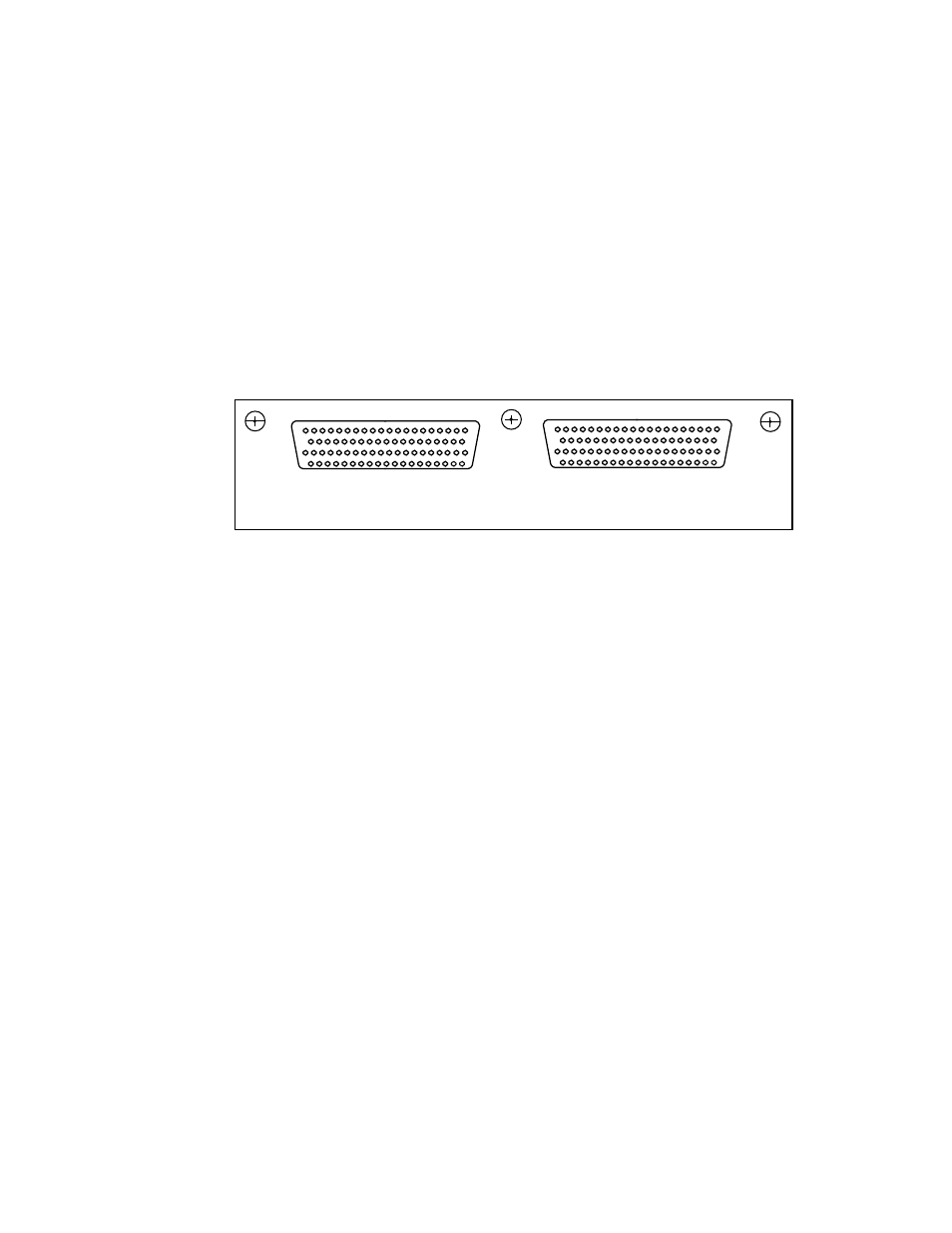

L4450A D-Sub Connectors
The L4450A uses two D- sub 78- pin female connectors. Each connector
provides contains one bank of the module. As viewed from the rear panel,
the connectors and their banks are shown below.
P1 (Bank 1)
P2 (Bank 2)
