Agilent Technologies L4400 User Manual
Page 49
Software Installation and Configuration
2
L4400 User’s Guide
37
From the Agilent Connection Expert main window, highlight the instrument added and
then click ‘Change Properties ...”. Within the configurable properties window, change
the address of the instrument from ‘9’ to ‘10’ and click ‘OK’.
Highlight instrument and
select, change address to
‘10’.

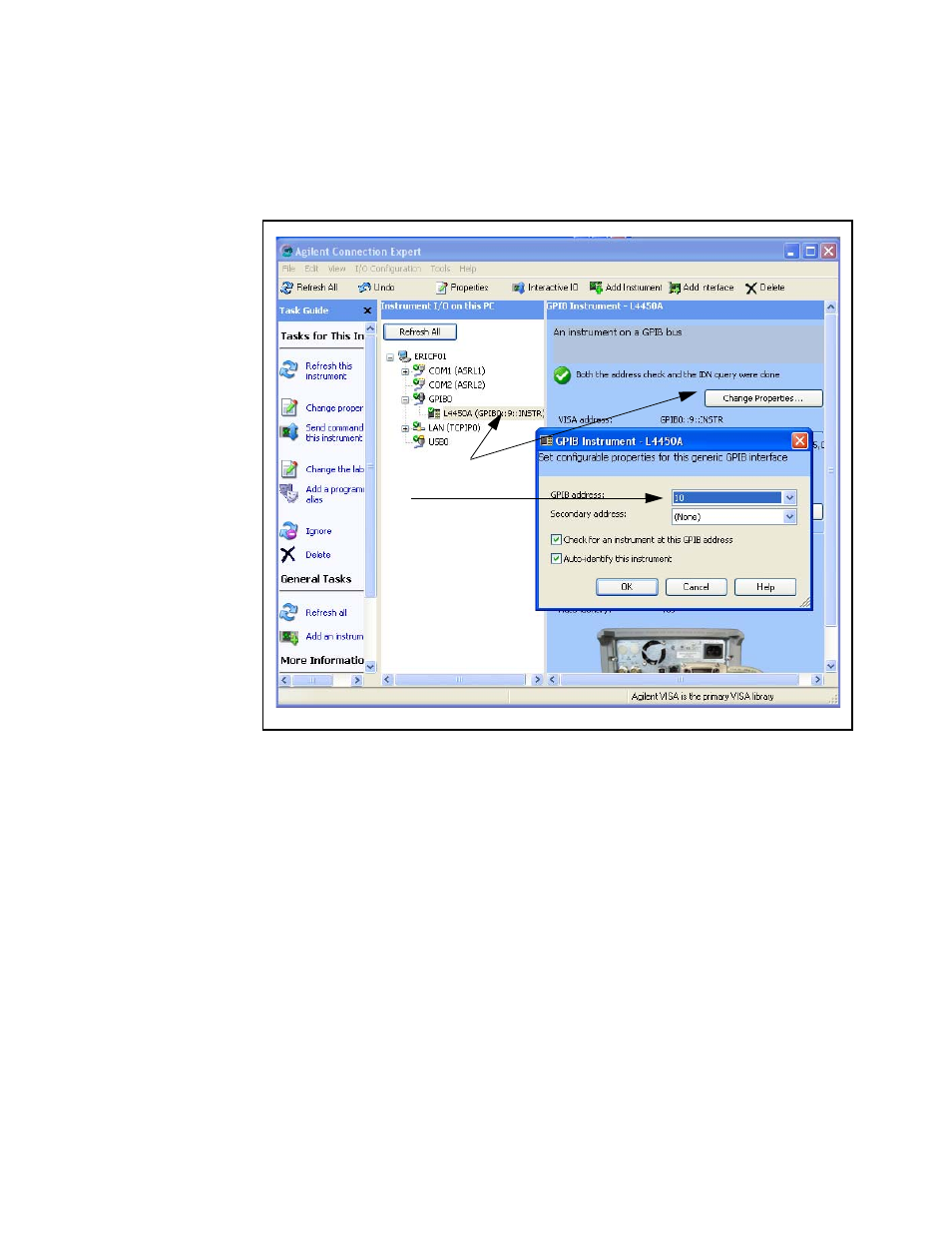

Figure 2-20. Changing the GPIB Address within Configuration Expert.
Verifying the new GPIB Path
To verify the GPIB address change, you can close the Interactive IO window, select the
instrument, and reopen Interactive IO. Or, with Interactive IO remaining open, select
‘Connect’ and change the address from ‘9’ to ‘10’. Once connected to GPIB address
