10 L4400 User’s Guide
1 Introduction to the L4400 Series LXI Instruments
4. Install the second L4400 instrument (if present) in the shelf area
adjacent to the first instrument. If only one instrument is installed,
install a filler panel on the front edge of the unused area. Insert two
M4x8 flat head screws (item 1) upward through the bottom of the shelf
and into the panel.
5. Connect the instrument power cord, LAN cable, and GPIB cable if
present.
6. For instruments that have accompanying terminal blocks, partially
remove the instrument sub- assembly from the instrument (carrier) by
loosening the spring- loaded mounting screws (Figure 1- 5). Remove the
support sleeve from the terminal block. Locate and remove the flat head
screws from the sleeve and remove the pan head screw from between the
instrument’s D- sub connectors (Figure 1- 5). Connect the sleeve to the
instrument using the flat head and pan head screws as shown. Reconnect
the sub- assembly.
terminal block
flat head screws
support sleeve
pan head screw
pan head screw
flat head screws
spring-loaded
mounting screws
instrument sub-assembly

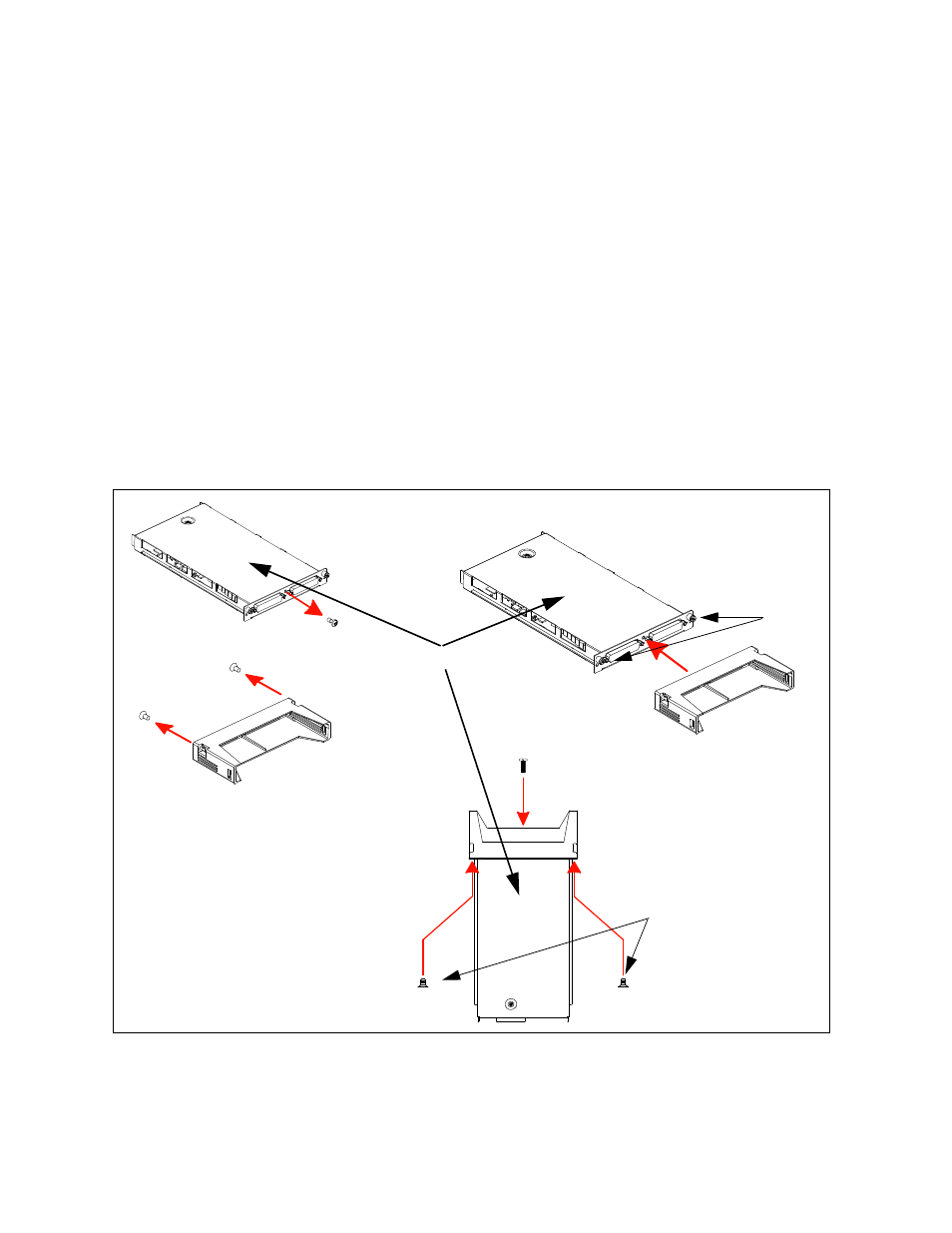

Figure 1-5. Connecting the Terminal Block Support Sleeve.
