L4445A Microwave Switch/Attenuator Driver

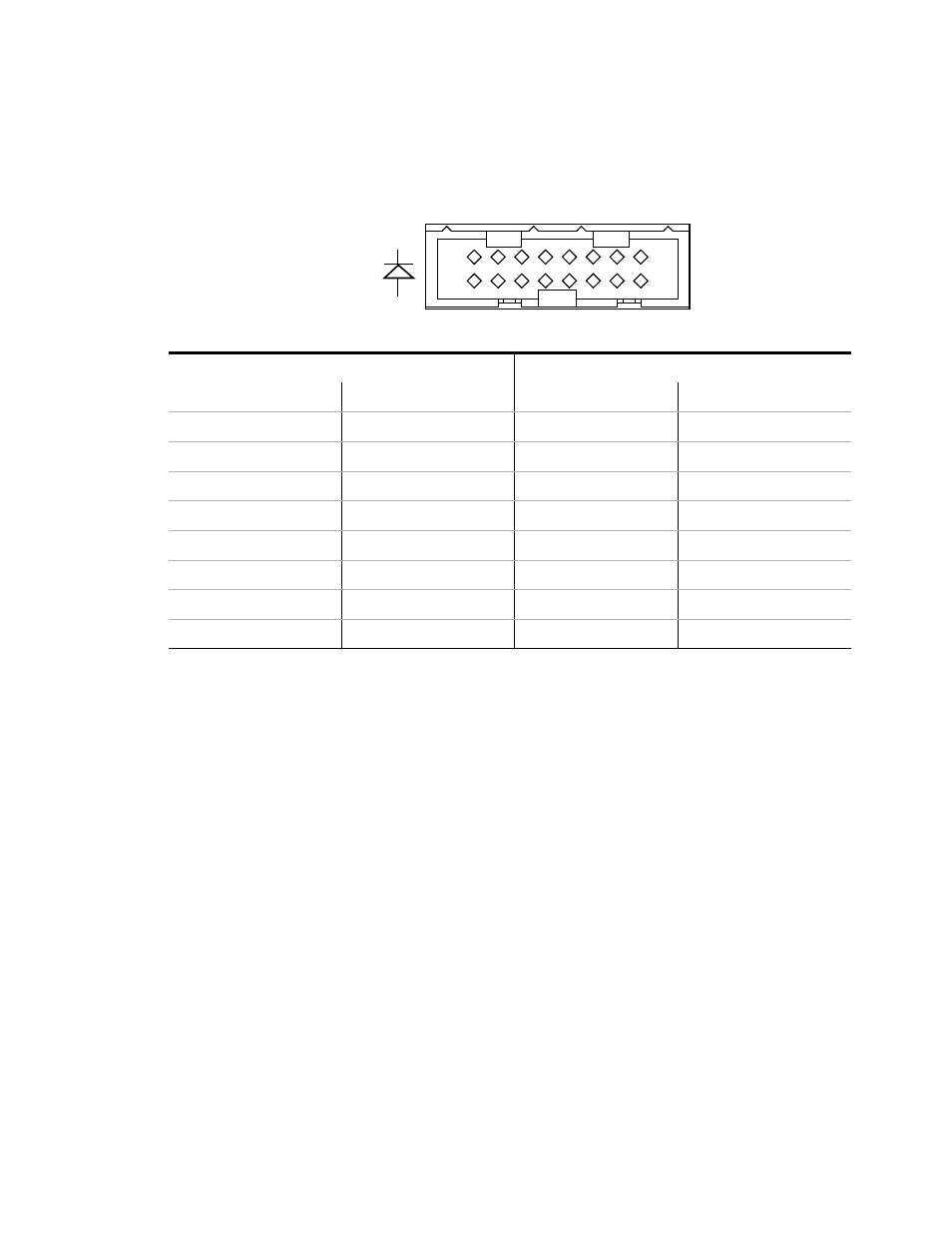

Y1154A LED Connectors LED1 and LED2
2
1
15
16
LED1 Connector
LED2 Connector
Pin
Use
Pin Use
Pin
Use
Pin
Use
1
+VI
2
SW1 - A
1
+VI
2
SW5 - A
3
+VI
4
SW1 - B
3
+VI
4
SW5 - B
5
+VI
6
SW2 - A
5
+VI
6
SW6 - A
7
+VI
8
SW2 - B
7
+VI
8
SW6 - B
9
+VI
10
SW3 - A
9
+VI
10
SW7 - A
11
+VI
12
SW3 - B
11
+VI
12
SW7 - B
13
+VI
14
SW4 - A
13
+VI
14
SW8 - A
15
+VI
16
SW4 - B
15
+VI
16
SW8 - B
