L4445A Microwave Switch/Attenuator Driver 7
L4400 User’s Guide 161

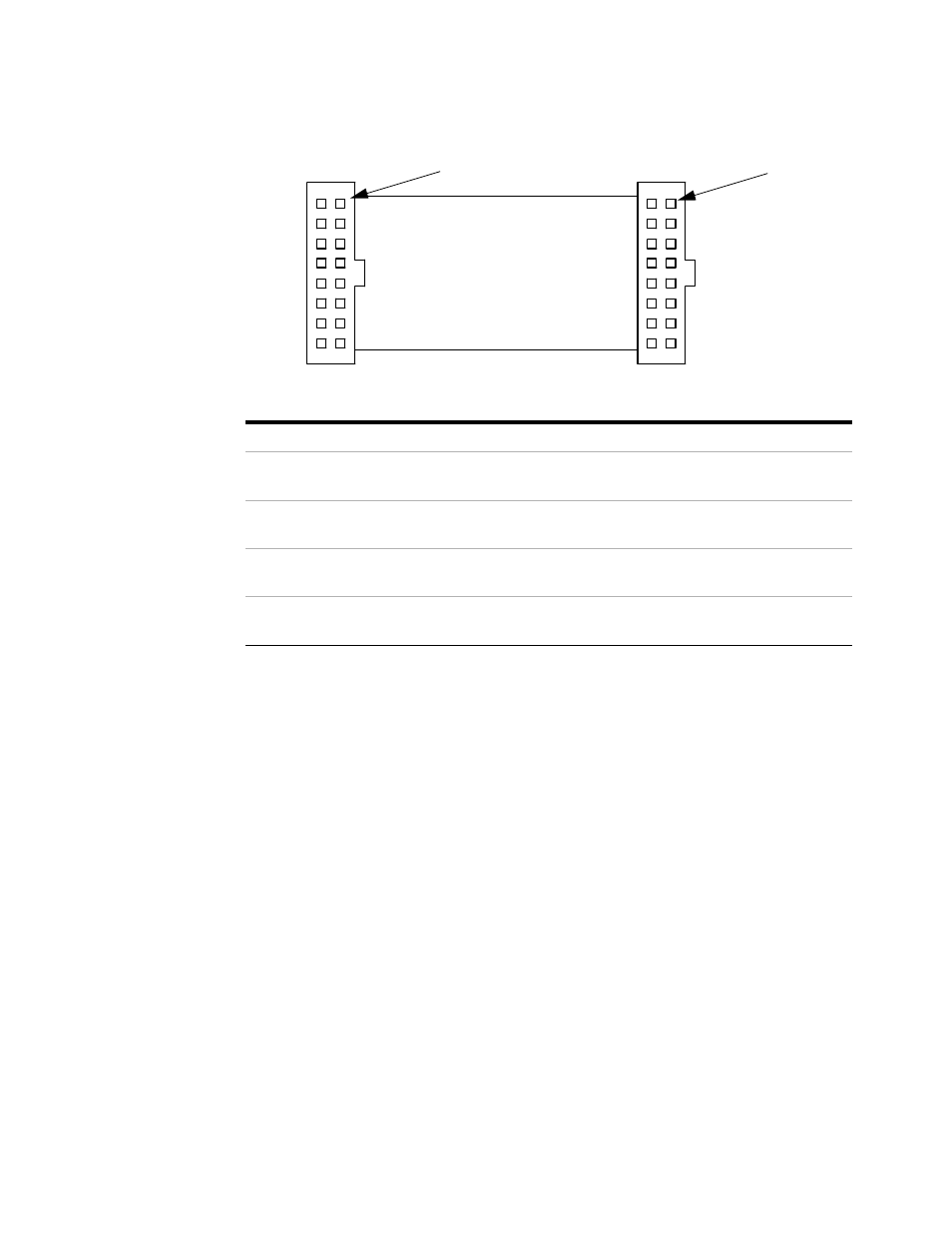

Pin 1 Pin 1
Item Description Example Part Numbers
Cable Type 16 conductor ribbon cable, 0.050" pitch, 26
or 28 AWG stranded 3M 3801/16 (26 AWG)

3M 3365/16 (28 AWG)
Y1151A Connector 16 pin socket connector, 0.1" x 0.1" pin grid,
IDC termination, center polarizing key 3M P/N 89116-0101

AMP P/N 76288-3
Switch Connector 16 pin socket connector, 0.1" x 0.1" pin grid,
IDC termination, center polarizing key 3M P/N 89116-0101

AMP P/N 76288-3
Cable Wiring Y1151A connector pin 1 to switch connector
pin 1
