Avaya G350 Manager User Guide 73
WAN Configuration
DLCIs
The DLCIs tab of the Channel Group dialog box provides information
about the DLCIs (Data Link Connection Identifiers) in the Channel Group
and enables you to create, modify, and delete DLCIs, and associate a DLCI
with a specific Sub-Frame-Relay interface.
To view the DLCIs tab of the Channel Group dialog box:
1. Click a Channel Group icon in the Chassis View. A list of Channel
Groups on the port appears.
2. Click the Channel Group you want to configure. The Channel
Group dialog box opens with the Channel Group tab.
3. Click DLCIs . The DLCIs tab of the Channel Group dialog box
appears.

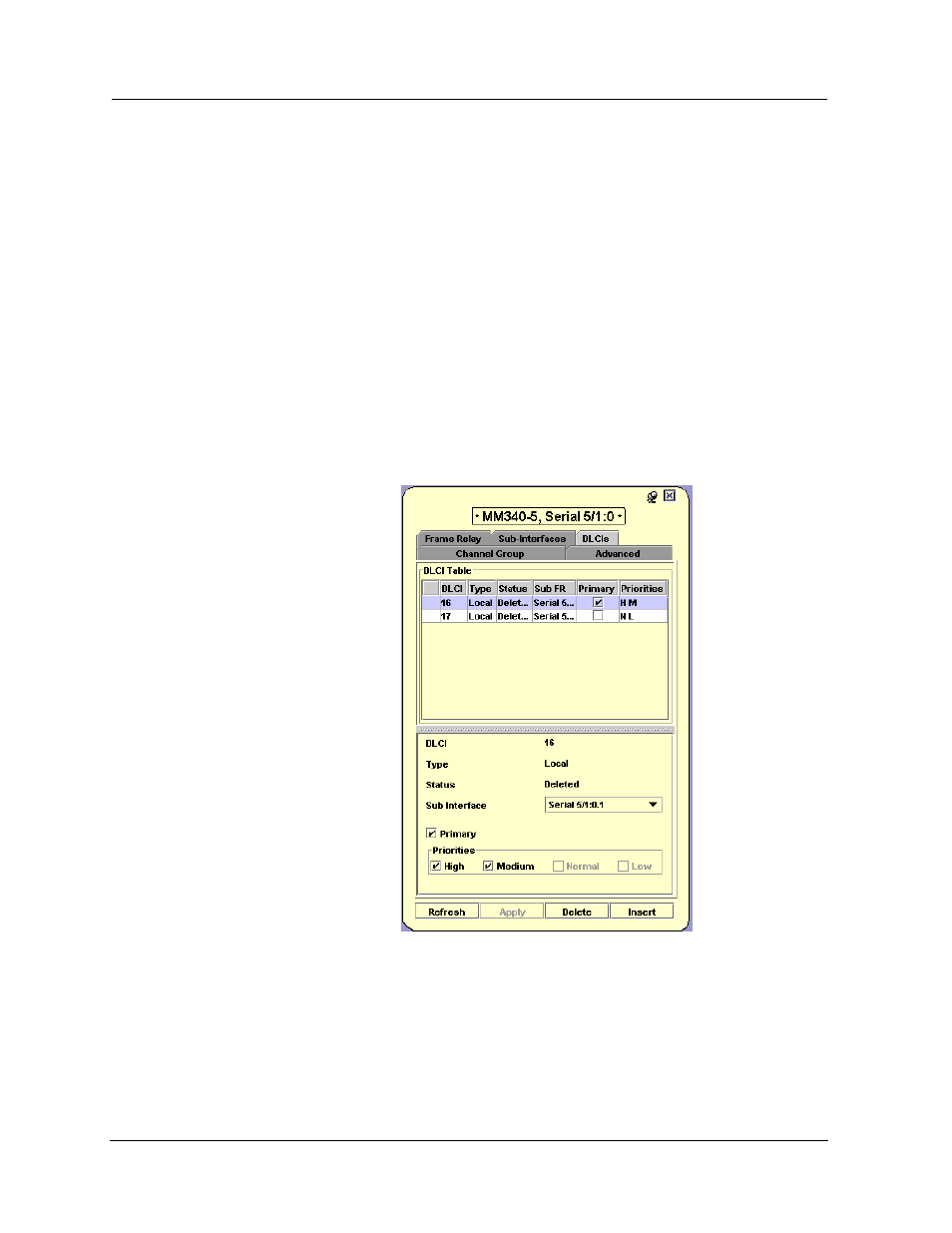

Figure 7-8. Channel Group Dialog Box - DLCIs Tab
The DLCIs tab of the Channel Group dialog box provides a list of available
DLCIs in the upper section of the dialog box. These DLCIs are learned via
LMI. To view configuration information for a specific DLCI, click the DLCI
in the list. Configuration information for the selected DLCI appears in the
bottom of the dialog box.
You can create, modify, and delete DLCIs using the DLCI tab of the
Channel Group dialog box.
