Chapter 7
56 Avaya G350 Manager User Guide
To save the changes to the WAN module configuration to the startup
configuration, click
on the Toolbar. The configuration
changes are saved.
E1/T1 Port Configuration
In addition to the Ethernet ports found on an Avaya G350 device, the
WAN expansion module may have E1/T1 ports. This section provides
information on viewing and configuring E1/T1 port parameters.
To display the E1/T1 Port Configuration dialog box, click the E1/T1 port’s
symbol in the Chassis View or the Tree View. The E1/T1 Port
Configuration dialog box opens.

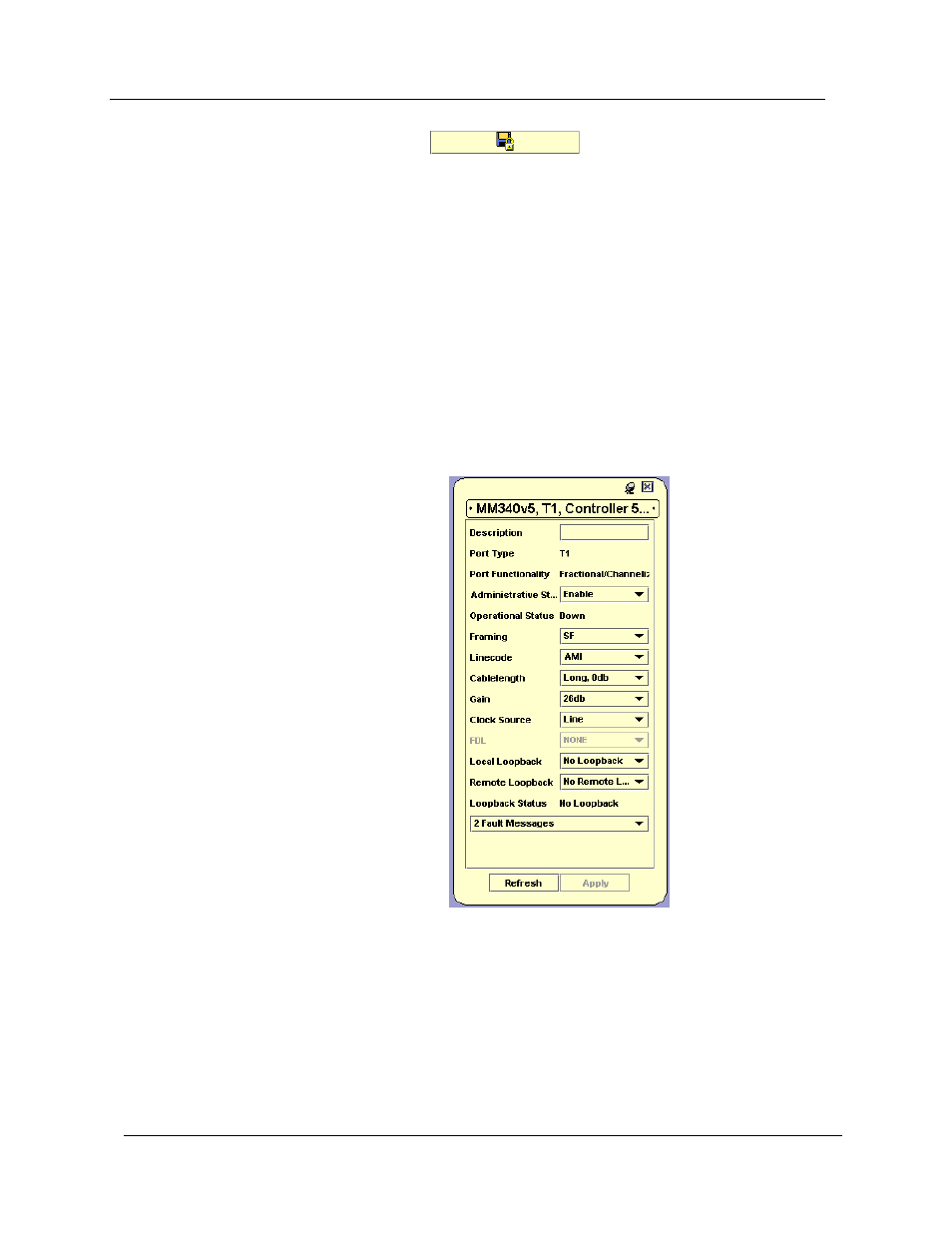

Figure 7-2. E1/T1 Port Configuration Dialog Box
The E1/T1 port is used to connect to an E1 or T1 line. The E1/T1 Port
Configuration dialog box provides configuration and status information
about the E1/T1 port.
