When you place the cursor on a toolbar icon for one second, a label
appears with the name of the button.
You can toggle the display of the application toolbar. To toggle the display
of the application toolbar, select
View > Toolbars > Show Application
Toolbar .
Get/Set Toolbar
The Get/Set Toolbar provides buttons for getting and setting configuration
parameters for selected ports. When a port is selected, its configuration is
reflected on the Get/Set Toolbar. Each group of buttons represents the
various possible states of a configuration parameter. For example, the first
group of buttons represents the possible speed of a port - 10 Mbps,
100 Mbps, or 1000 Mbps. If the center button is depressed, the port is
currently configured to operate at 100 Mbps.
Shows Switch-Connected
Addresses. View > Switch-Connected
Addresses
Displays the VLAN
window. Configure > VLAN
Displays the Port
Redundancy table. Configure > Port Redundancy
Starts the Port Mirroring
wizard. Configure > Port Mirroring
Displays the Trap Manager
Table. Configure > Trap Managers
Commits configuration
changes. Actions > Commit
Launches Avaya Call
Processing on the selected
Media Gateway or Voice
port. Tools > Administer
Station/Gateway
Opens the on-line help. Help > Help On
Selects a VLAN. Ports that
are not on the selected
VLAN appear dark gray in
the Chassis View.

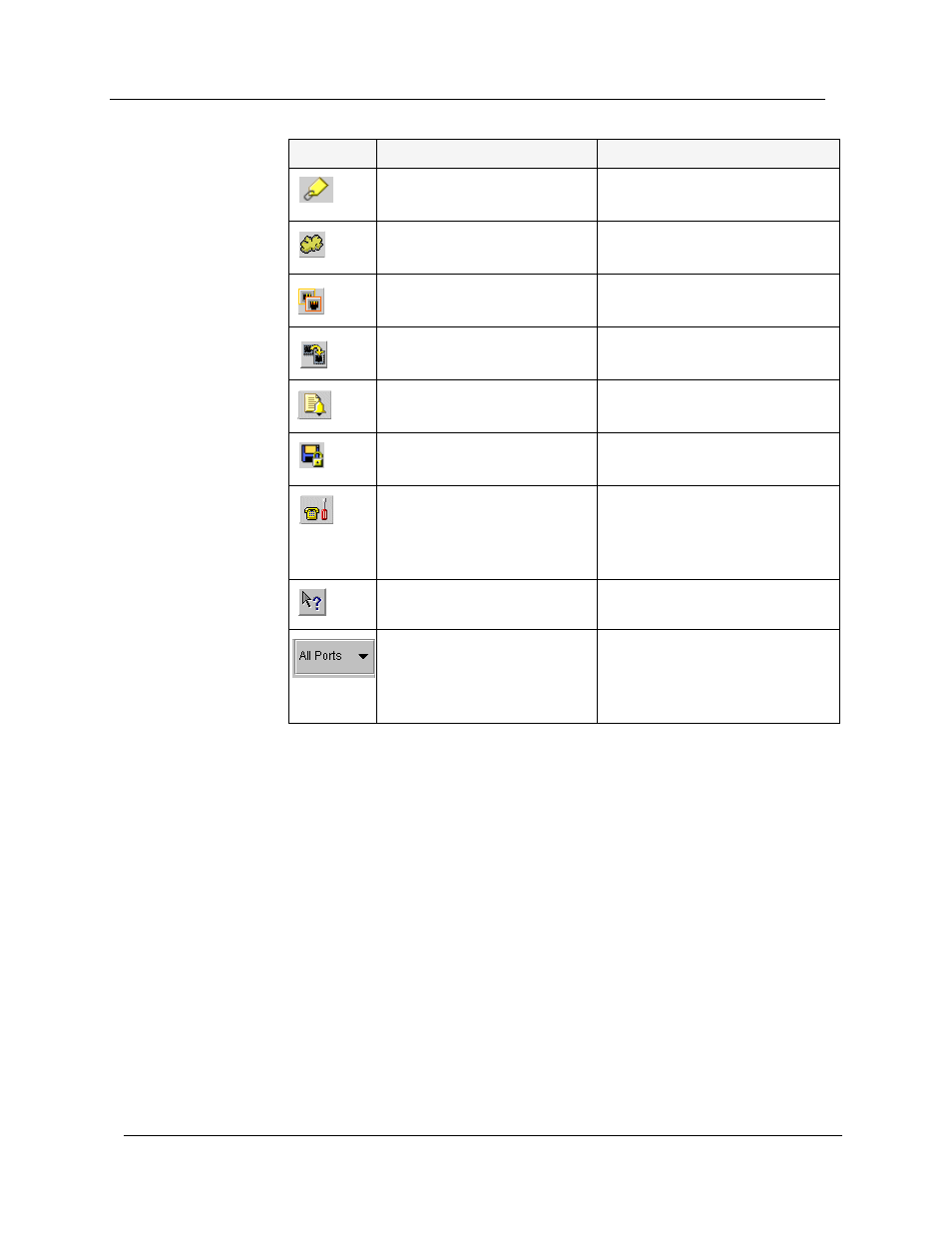

Table 2-1. Application Toolbar (Continued)
Button Description Menu Item
