Avaya G350 Manager User Guide 63
WAN Configuration
3. Click Advanced . The Advanced tab of the Channel Group dialog
box appears.

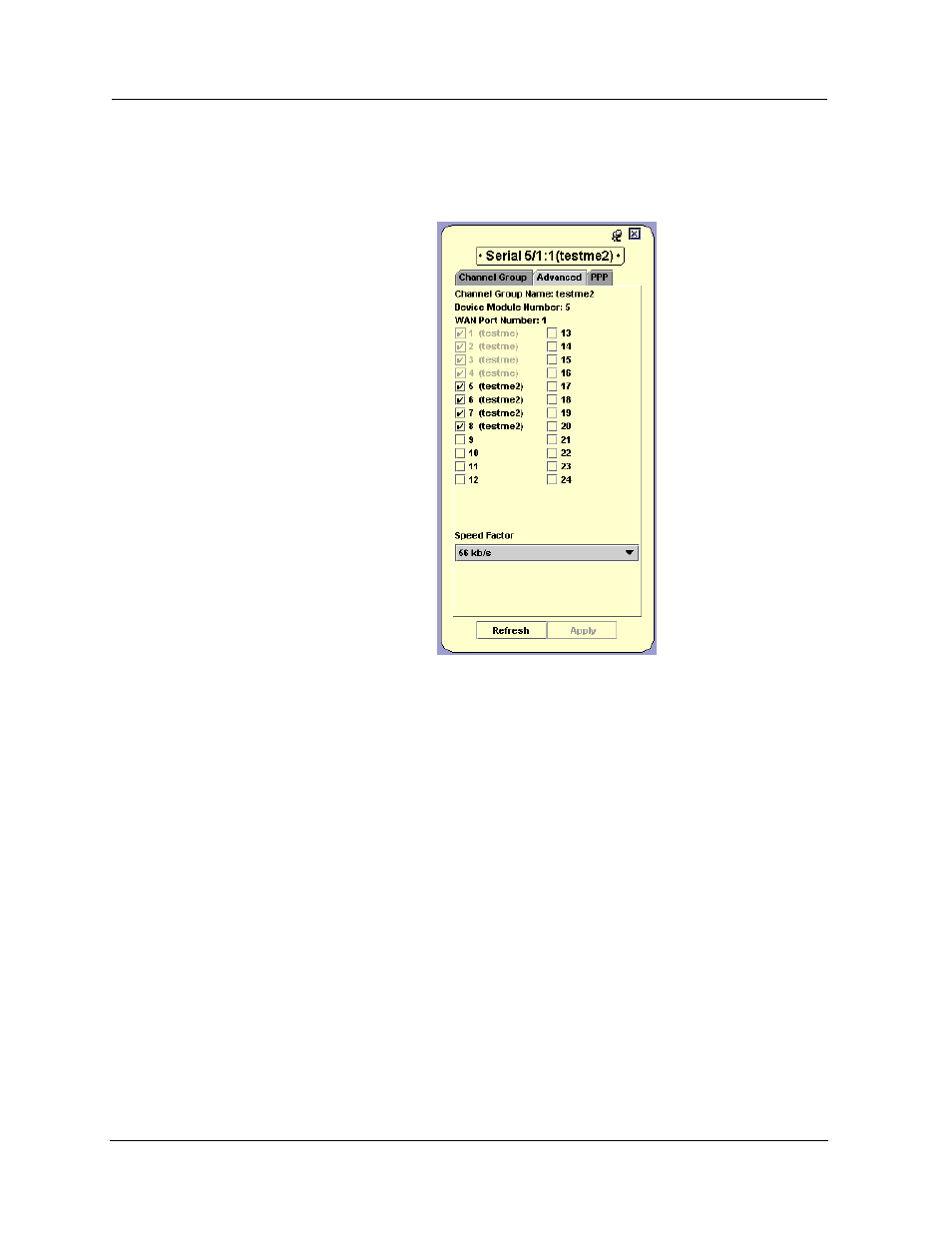

Figure 7-4. Channel Group Dialog Box - Advanced Tab
To configure the channels that comprise the Channel Group, check the
checkboxes next to the channels you want included in the Channel
Group. Uncheck the checkboxes next to the channels you want to
remove from the Channel Group.
* Note: Channels that belong to other Channel Groups appear gray
with the name of the Channel Group to which they belong.
These channels cannot be added to the selected Channel
Group.
To configure the speed factor of the Channel Group, select a Channel
Group speed factor from the
Speed Factor pull-down listbox.
