Chapter 7
70 Avaya G350 Manager User Guide
3. Click Sub-Interfaces . The Sub-Interfaces tab of the Channel Group
dialog box appears.

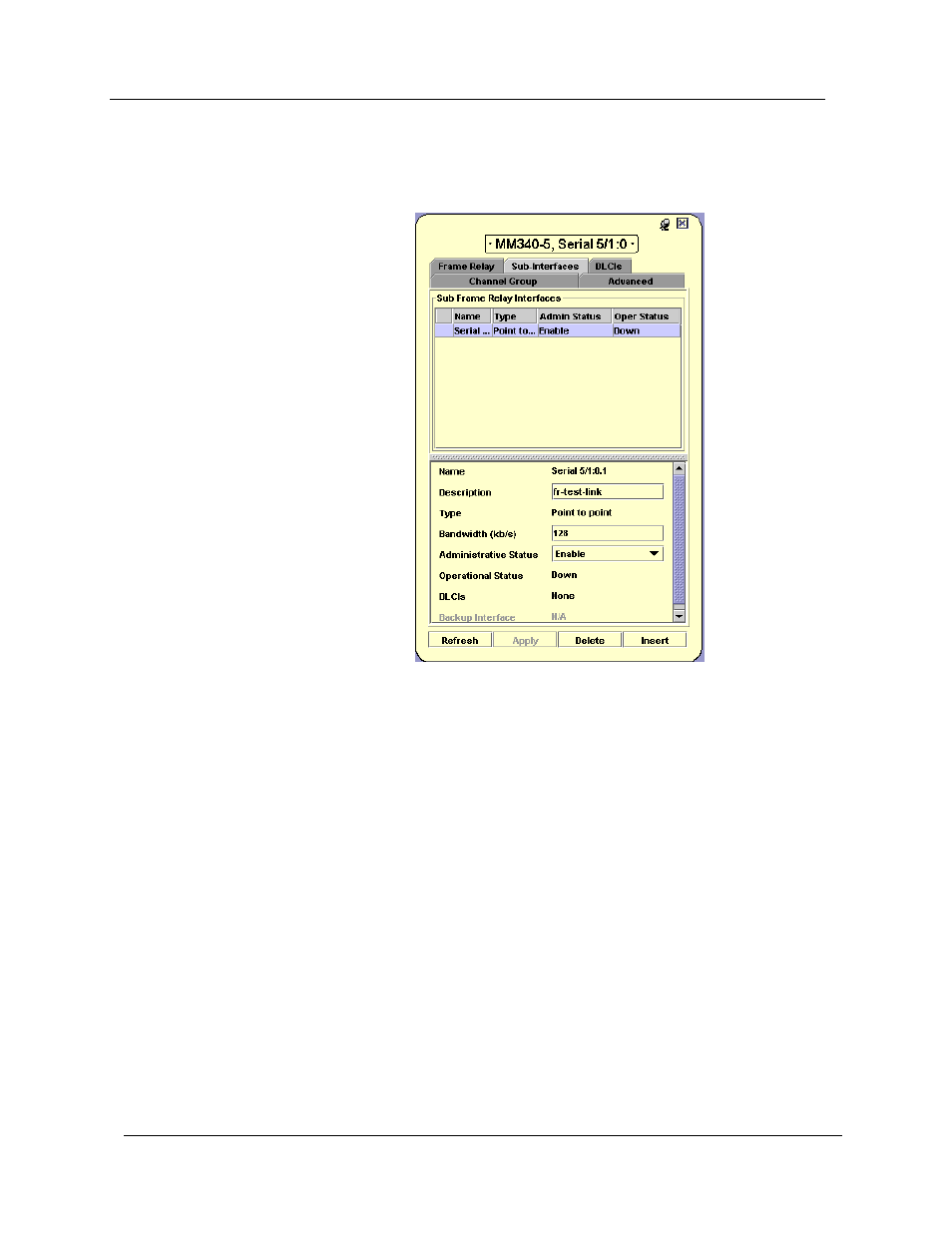

Figure 7-7. Channel Group Dialog Box - Sub-Interfaces Tab
The Sub-Interfaces tab of the Channel Group dialog box provides a list of
Sub-Frame-Relay interfaces in the upper section of the dialog box. To
view configuration information for a specific Sub-Frame-Relay interface,
click the Sub-Frame-Relay interface in the list. Configuration information
for the selected Sub-Frame-Relay interface appears in the bottom of the
dialog box.
You can create, modify, and delete Sub-Frame-Relay interfaces using the
Sub-Interfaces tab of the Channel Group dialog box.
To create a new Sub-Frame-Relay interface:
1. Click Insert . A new row appears in the Sub-Frame-Relay Interfaces list.
2. Enter the parameters for the Sub-Frame-Relay interface using the
fields at the bottom of the dialog box.
3. Click Apply . The Sub-Frame-Relay interface is created.
