Chapter 7
96 Avaya G350 Manager User Guide
Sub-Frame-
Relays
The Sub-Frame-Relays tab of the USP dialog box provides information
about the configuration of Sub-Frame-Relay interfaces in the USP.
To view the Sub-Frame-Relays tab of the USP dialog box:
1. Click a USP symbol in the Chassis View or Tree View. The USP
dialog box opens with the Serial Port tab.
2. Click Sub-Frame-Relays . The Sub-Frame-Relays tab of the USP
dialog box appears.

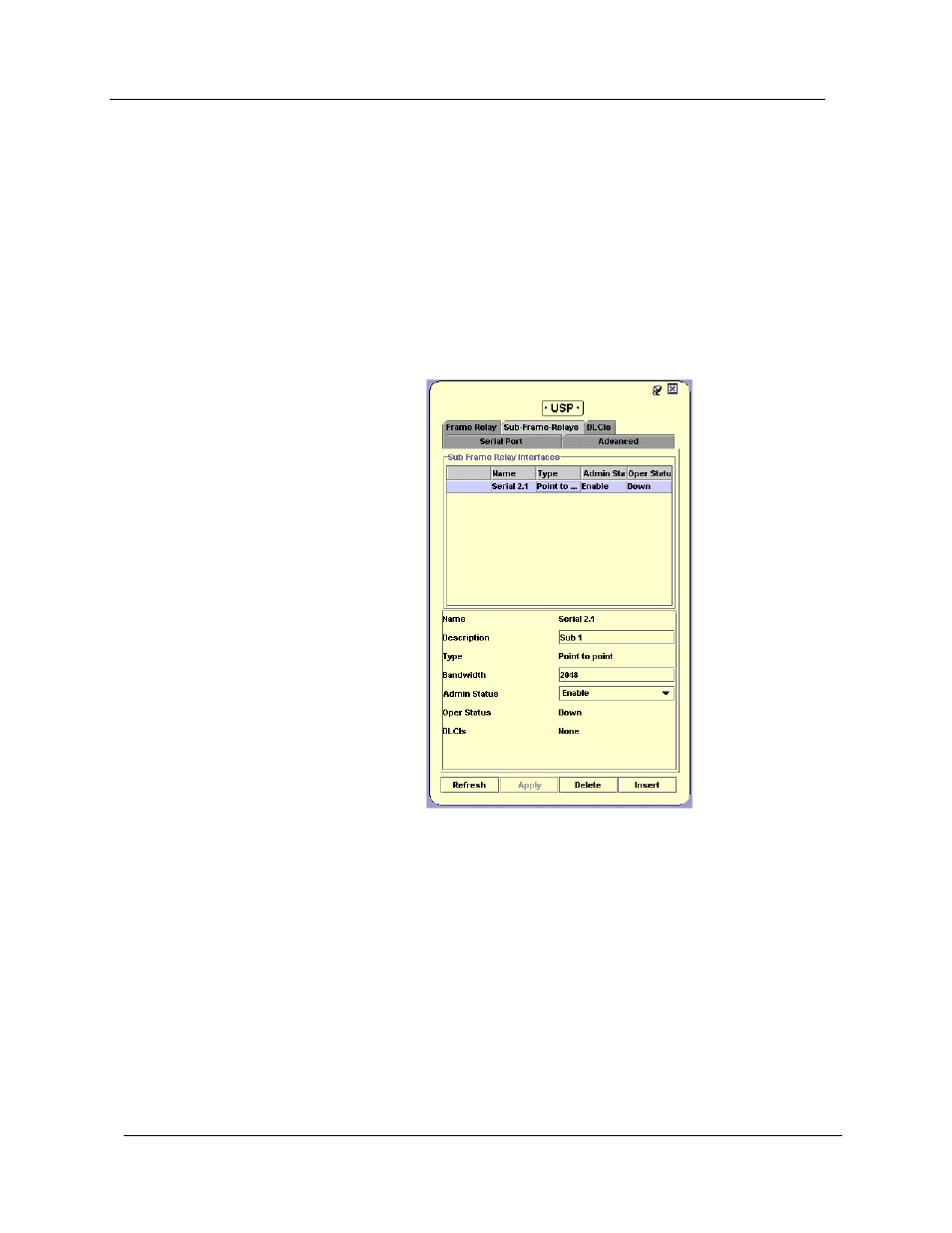

Figure 7-19. USP Dialog Box - Sub-Frame-Relays Tab
The Sub-Frame-Relays tab of the USP dialog box provides a list of
Sub-Frame-Relays in the upper section of the dialog box. To view
configuration information for a specific Sub-Frame-Relay interface, click
the Sub-Frame-Relay in the list. Configuration information for the
selected Sub-Frame-Relay interface appears in the bottom of the dialog
box.
You can create, modify, and delete Sub-Frame-Relay interfaces using the
Sub-Frame-Relays tab of the USP dialog box.
To create a new Sub-Frame-Relay interface:
1. Click New . A new row appears in the Sub-Frame-Relay Interfaces list.
