Appendix A. Drawings

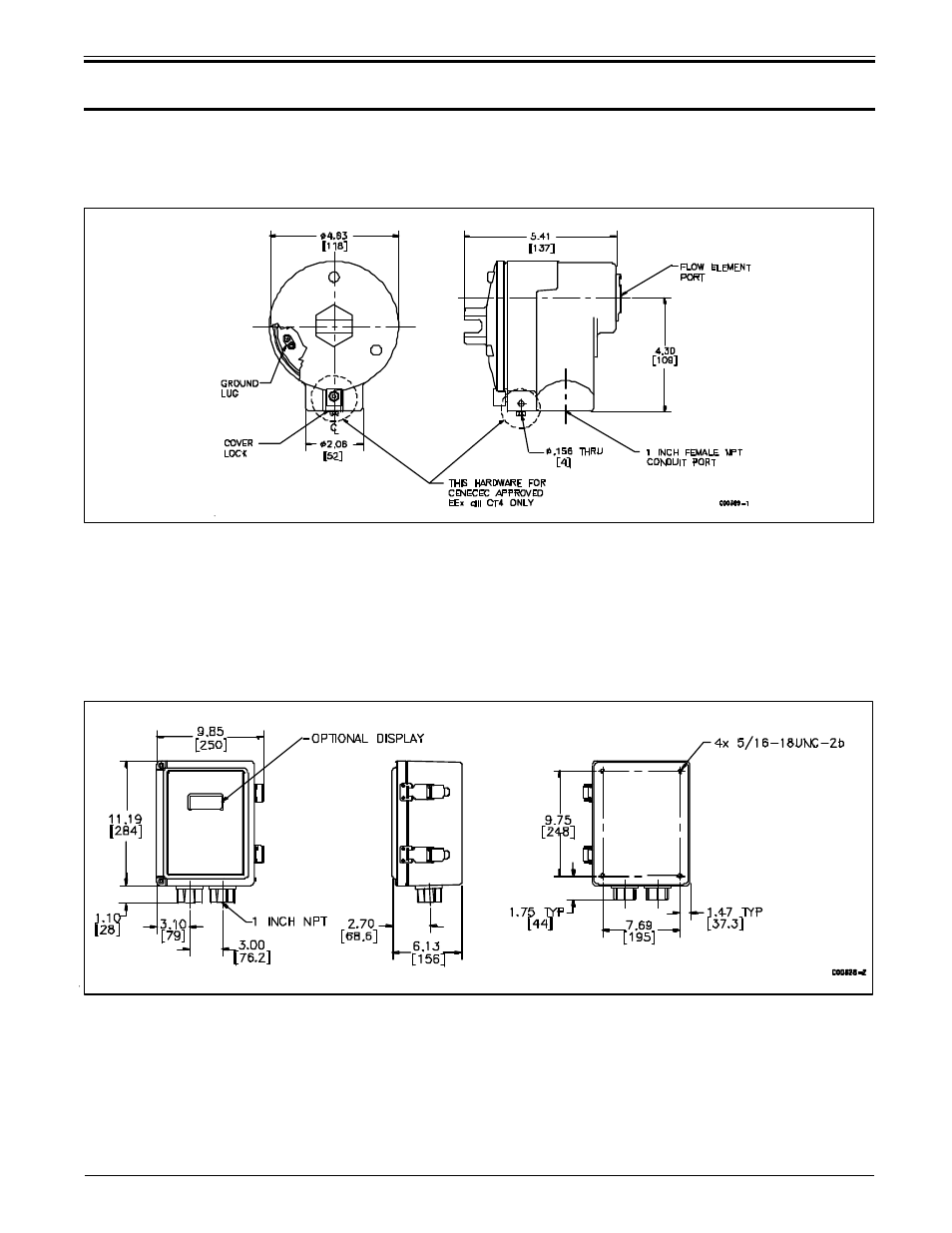

Figure 30. Remote Enclosure NEMA Type 4X (Fiberglass)

Figure 29. Local Enclosure NEMA Type 4X and 7 Hazardous Location

(Aluminum and 300 series stainless steel enclosures shown. Feraloy enclosures are slightly smaller)
